Coupling and uncoupling
42
7.3 Draw rail
7.3.1 Mounting position

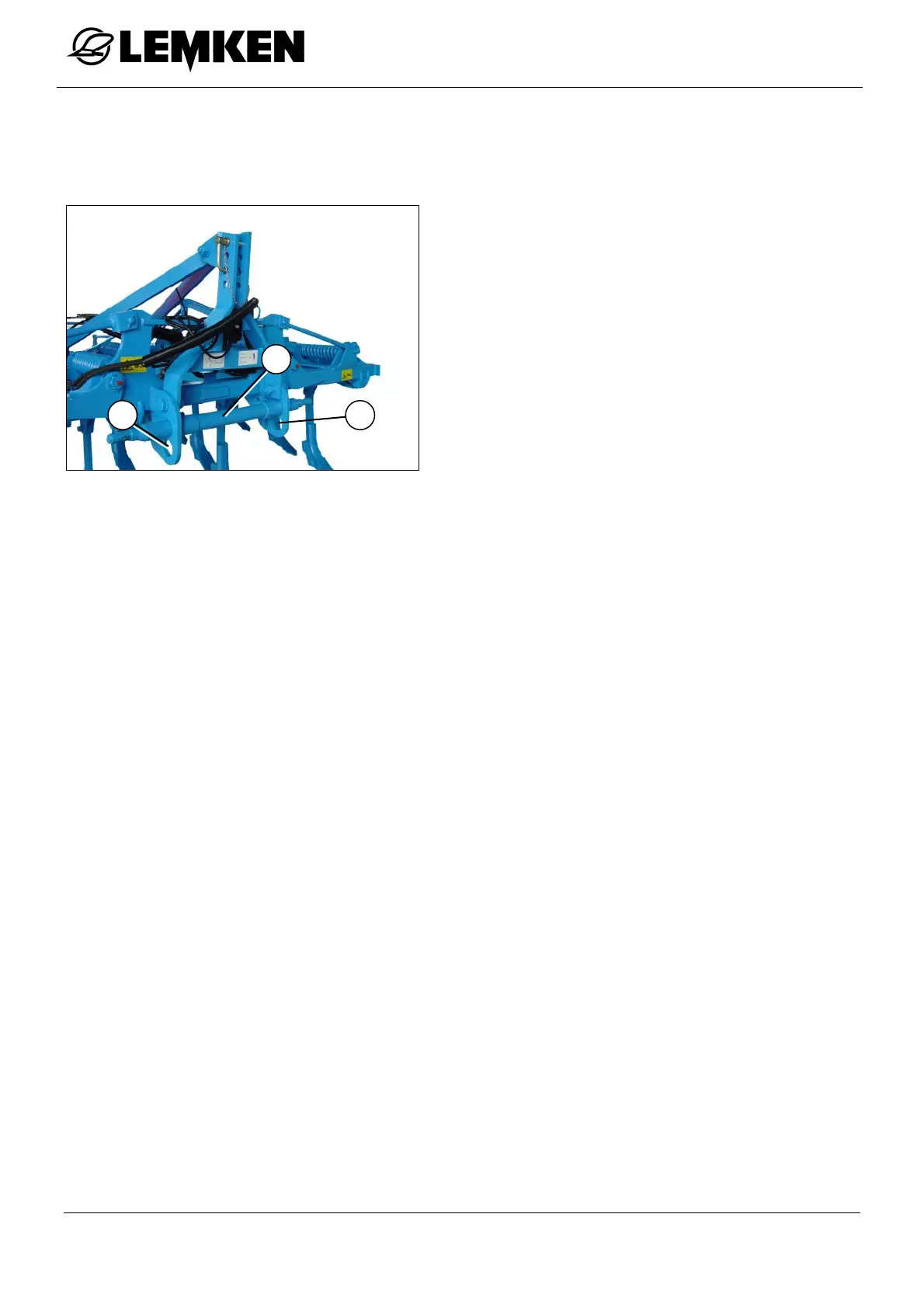

The draw rail (1) can be mounted on the
device at two heights = draw point posi-
tions. The picture shows the draw rail (1) in
the upper mounting position = low draw
point. The bores (2) are used to hold the
draw rail (1) in the lower mounting position
= high draw point.
Draw rail mounted above = low draw point
Draw rail mounted below = high draw point
Switch to the upper mounting position of the draw rail (1)
to improve the infeed of the device
to increase the roller pressure
to reduce the lifting force requirement
Switch to the lower mounting position of the draw rail (1)
to increase the lifting height
to reduce the slippage
to reduce the roller pressure
2
1
2
