Adjustments
50

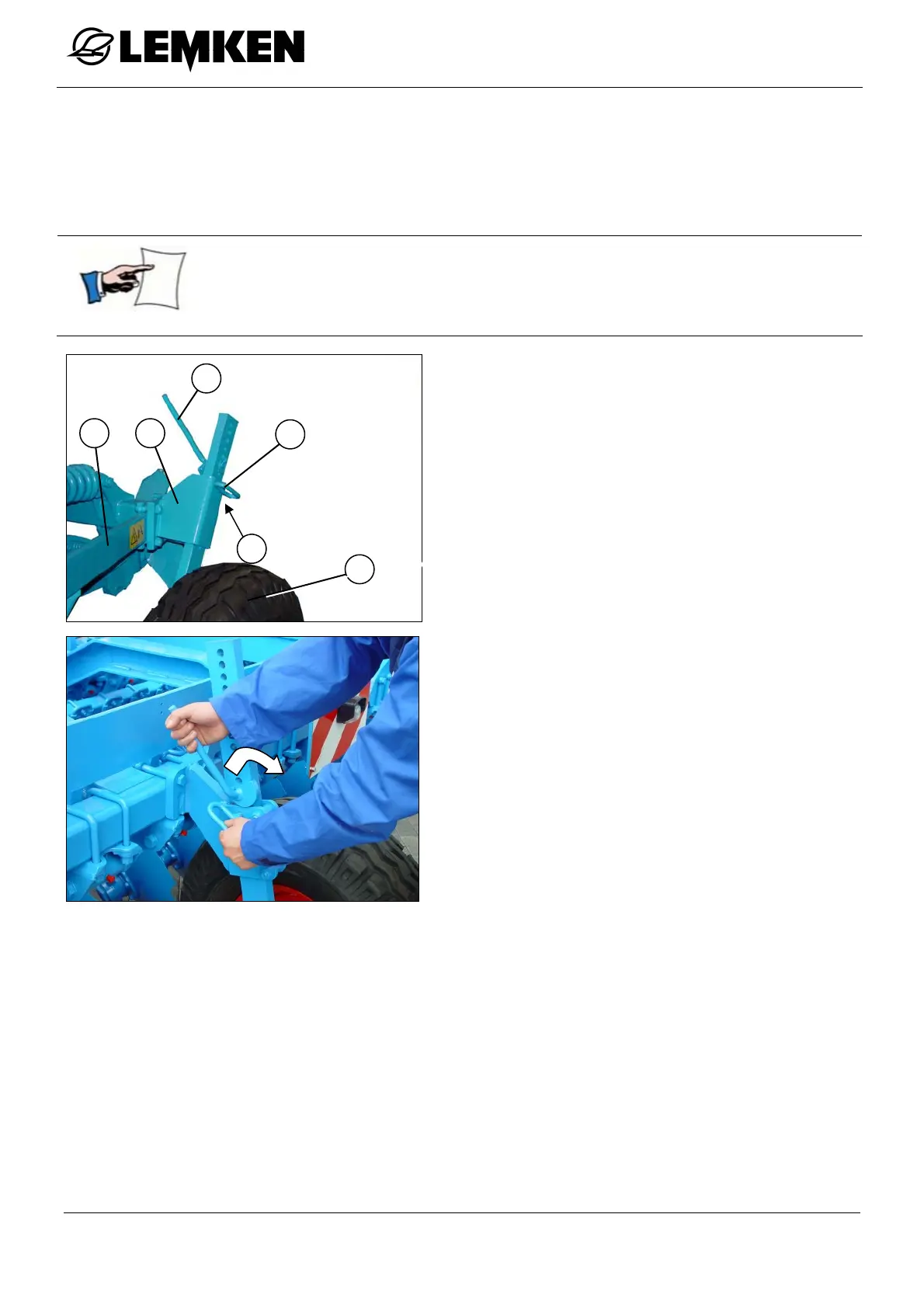

9.3 Support wheels
The support wheels (1) are attached to the outside of the frame (2) at the front
and improve the depth guide of the device.
The support wheels must not be loaded with too much weight,
otherwise the feed behaviour of the mounted devices will be nega-
tively affected.
Lift the device out slightly.
The depth is adjusted via the pin ad-
justment (3) with pin (4) and the cam
lever (5).
Insert the cam lever (5) directly above
the bracket (6) and secure the cam lever
(5) with the linch pin.
Unload the pin (4) by swivelling the cam
lever (5).
Release the pin (4) and pull it out.
Move the support wheel (1) into the re-
quired position by swivelling the cam
lever (5).
Re-insert the pin (4).
Secure the pin (4) with the linch pin.
2
1
3
4
6
5
