Adjustments
49

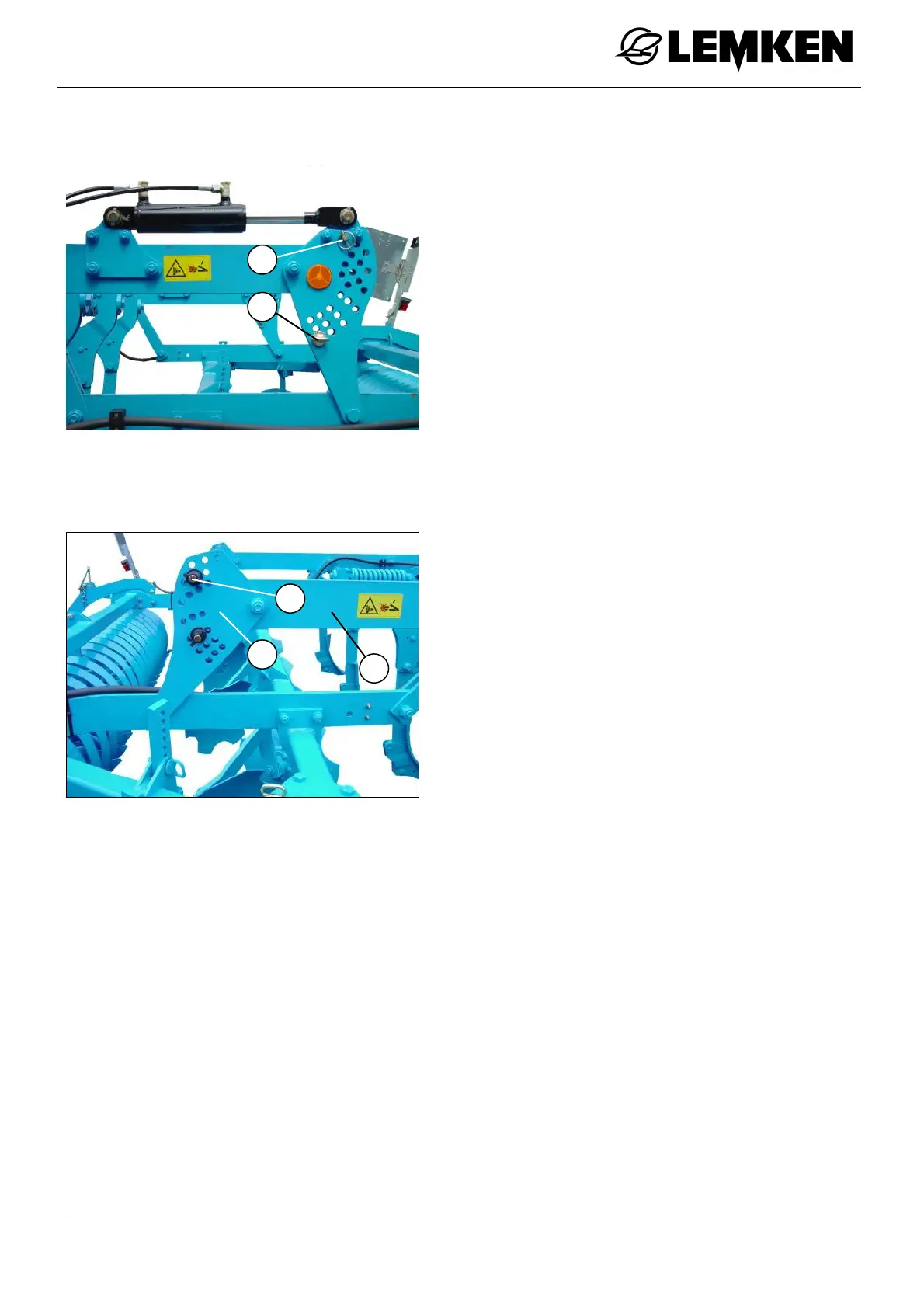

9.1.2 Hydraulic working depth adjustment
In the hydraulic working depth adjustment
the guide pins (1) are used to set the ma-
ximum required working depth and the
guide pins (9) are used to set the minimum
required working depth.
The hydraulic cylinders are used to set ei-
ther the maximum or minimum working
depth adjustment as required.
9.2 Lowering depth of the rollers
To ensure that the roller is not lowered too
far when raising, the guide pins (1) must
be inserted as deep as possible into a hole
in the adjustment plates (2) above the car-
rier (3) in the working position.
With the implement in the working posi-
tion and the guide pin (1) unloaded, re-
lease the guide pin (1) and pull it out.
Insert the guide pin (1) into a deeper hole in the adjustment plates (2).
Secure the guide pin (1).
2
1
3
2
1
