Switching over to different share systems
64
10.2 Tine with integrated share foot
To switch over to a different share system, the corresponding components of the
tine (1) must be removed and replaced with the components required for the de-
sired share system.
To do this, lift out the device by approx.
20 cm.
Secure the device with a support to pre-
vent it from unintentionally dropping.
Lock the control units of the tractor and
switch the tractor engine off.

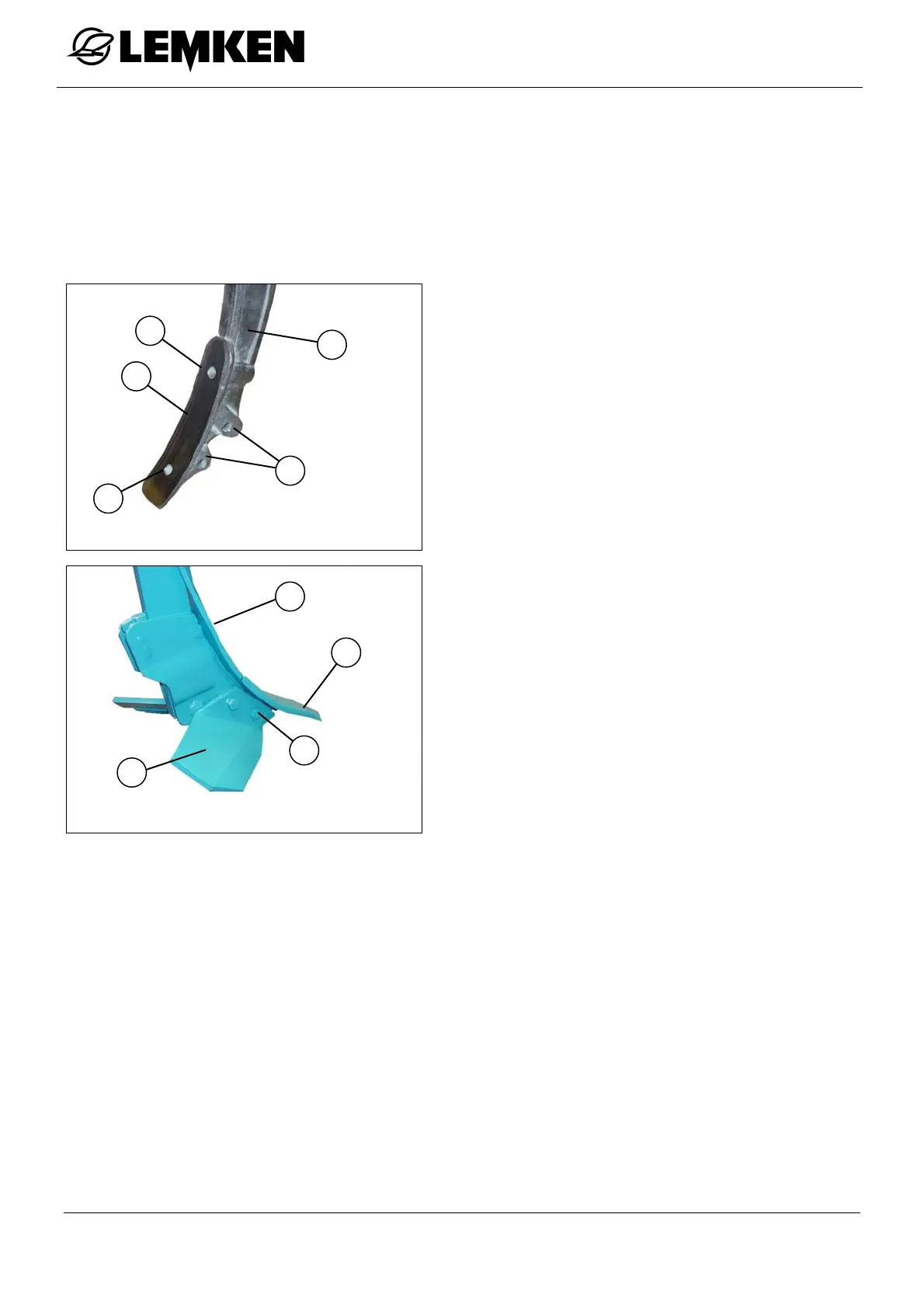

Connect the respective share tip (3) via
the bore (4),
the respective guide plate (5) via the
bore (6) and
the wing share (7) via the bores (8) by
means of screws (9) to the tine (1) with
integrated share foot (2).
