LEMKEN Karat 9 - Working Depth of the Edge Discs

Adjustments
53

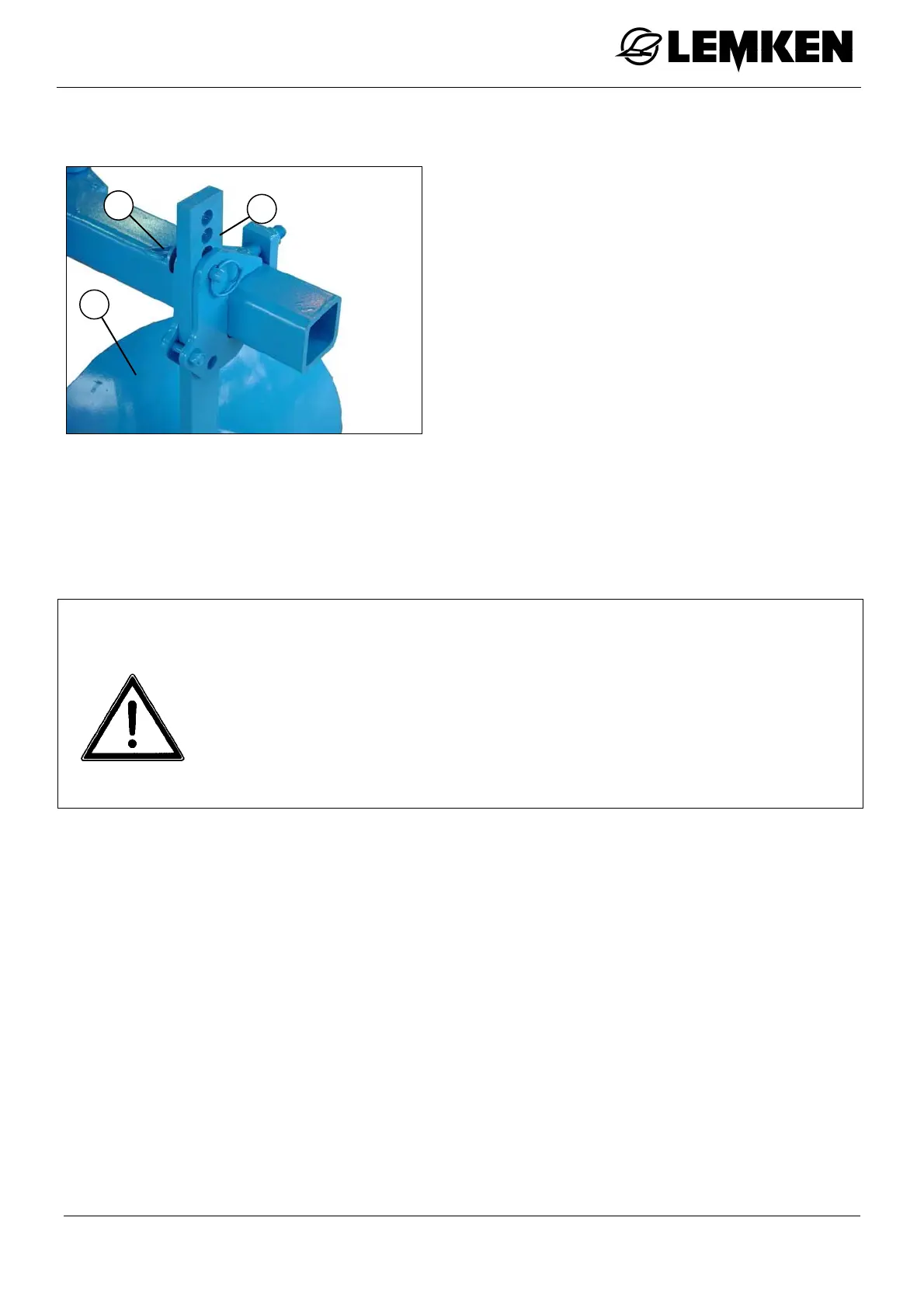

9.5 Working depth of the edge discs
The edge discs (1) are adjusted with the
pins (2) as follows:
 Release pin (2).
 Push up the disc carrier (3) slightly to
unload the pin (2).
 Pull the pin (2) out.
 Push the disc carrier (3) into the required position.
 Re-insert the pin (2).
 Secure the pin (2).
DANGER
Loss of components
If the guide pins are not secured, they can fall out due to vibra-
tions in operation. This can result in components being lost during
operation and transportation and can cause accidents or damage
to the device and the tractor.
The guide pins must always be secured.
2
1
3
