LEMKEN Karat 9 - Changing the Mounting Position

Coupling and uncoupling
43

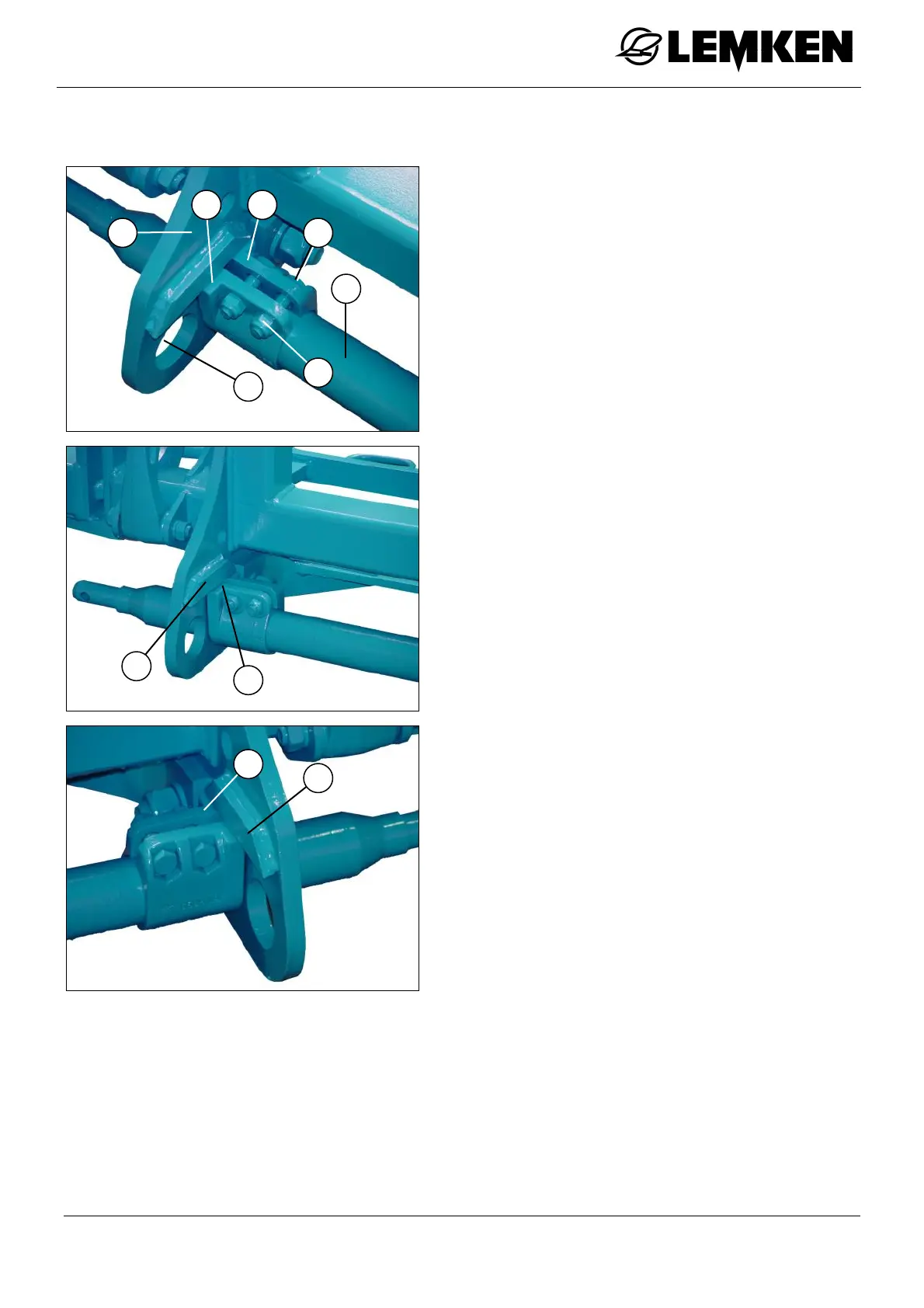

7.3.2 Changing the mounting position
If a different mounting position of the draw
rail (1) is required, the draw rail (1) must be
removed as follows and placed in the new
mounting position.
The device must be deposited in the ex-
tended position and detached from the
tractor.
 Loosen the nuts (3) on the bolts (4) of
the two locking pieces (5)
 Pull the draw rail (1) as far as the middle
out of the bores of the rail plates (6).
 Push the locking pieces (5) down off the
draw rail (1) and deposit them on the
ground.
 Pull the draw rail (1) all the way out of
the bores.
 Insert the draw rail (1) into the required
bore (2) of the rail plate (6) and push
them in by approx. 50 cm.
 Push the locking pieces (5) onto the
draw rail (1). Ensure that the side with
the support surface (7) is facing the rail
plate (6).
 Push the draw rail (1) through the bores until the two ends of the draw rail (1) on
the left and right are the same distance from the rail plates (6).
 Push the locking pieces (5) up to the rail plates (6). Ensure that the support sur-
faces (7) are positioned on the stop (8) of the rail plates (6).
 Tighten the nuts (3) on the bolts (4).
7
6
5
3
2
1
4
7
8
8
7
