LEMKEN Karat 9 - Roller Pressure Load Adjustment

Adjustments
59

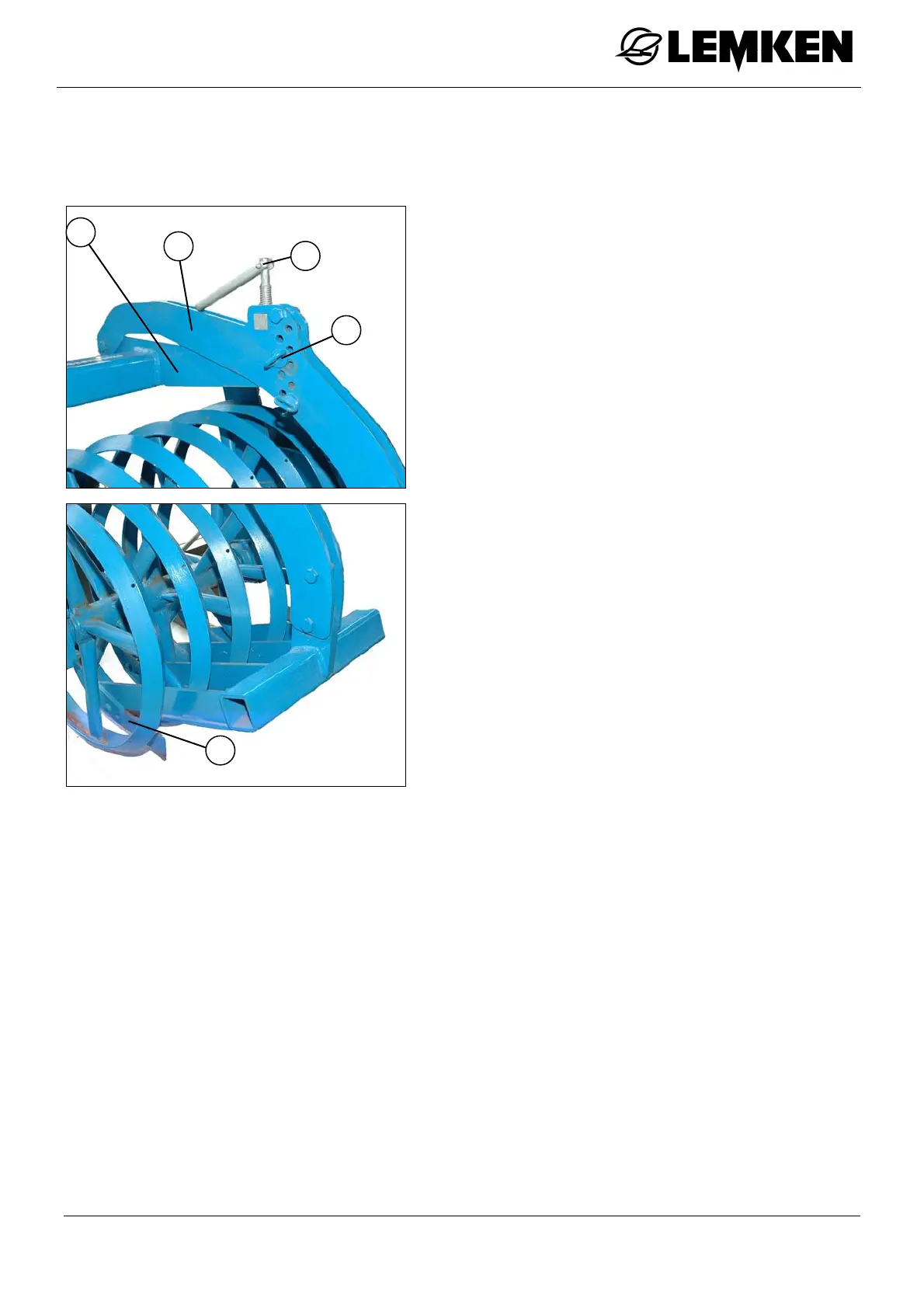

9.8.2 Blade rollers
Working depth of blades
The working depth of the blades (6) is ad-
justed using the guide pins (3) as follows:
 Turn the spindles clockwise to the stop
until the guide pins (3) have been re-
lieved of load.
 Release and remove the guide pins (3)
above the support plate (1).
 Move the supporting arms (4) to the de-
sired position using the spindles (2).
 Insert the guide pins (3) in one of the
free holes on the supporting arms (4).
 Secure the guide pins (3) with split rings.
 Turn the spindles (2) back slightly anti-
clockwise to relieve them of load.
2
1
4
3
6
