Coupling and uncoupling
45

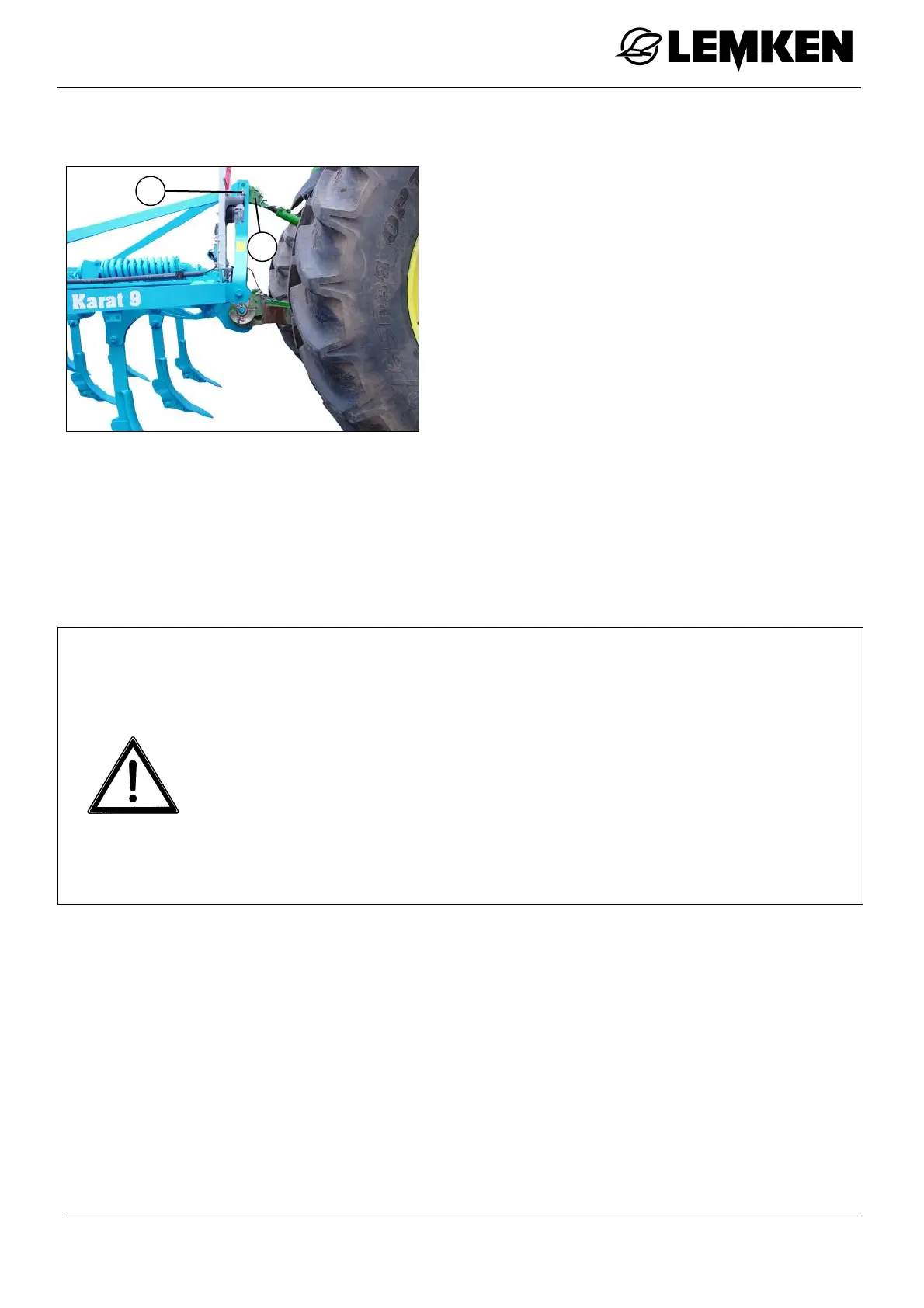

7.4.2 Changing the mounting position
If the top link (1) is to be placed in a differ-
ent mounting position, reposition the top
link (1) as follows. To do this, extend and
completely lower the device and switch the
hydraulic system of the tractor to position
control.
Actuate the hydraulic system of the trac-
tor until the top link pin (3) is relieved.
Release the top link pin (4) and pull it out.
Move the top link to its new position by adjusting the length until the top link pin
(3) can be inserted without actuating the hydraulic system of the tractor.
Secure the top link pin (3) with the linch pin.
CAUTION
Risk of injury from unsecured top link pin
If the top link pin is not secured, it may slip out or get lost.
As a result, the device may fall down or be damaged.
As a result, people in the immediate vicinity may be injured.
The top link pin must always be secured.
When the device is lifted out, there must be nobody in the im-
mediate vicinity of the device.
3
1
