Adjustments
48
9.1 Working depth of tines
9.1.1 General information

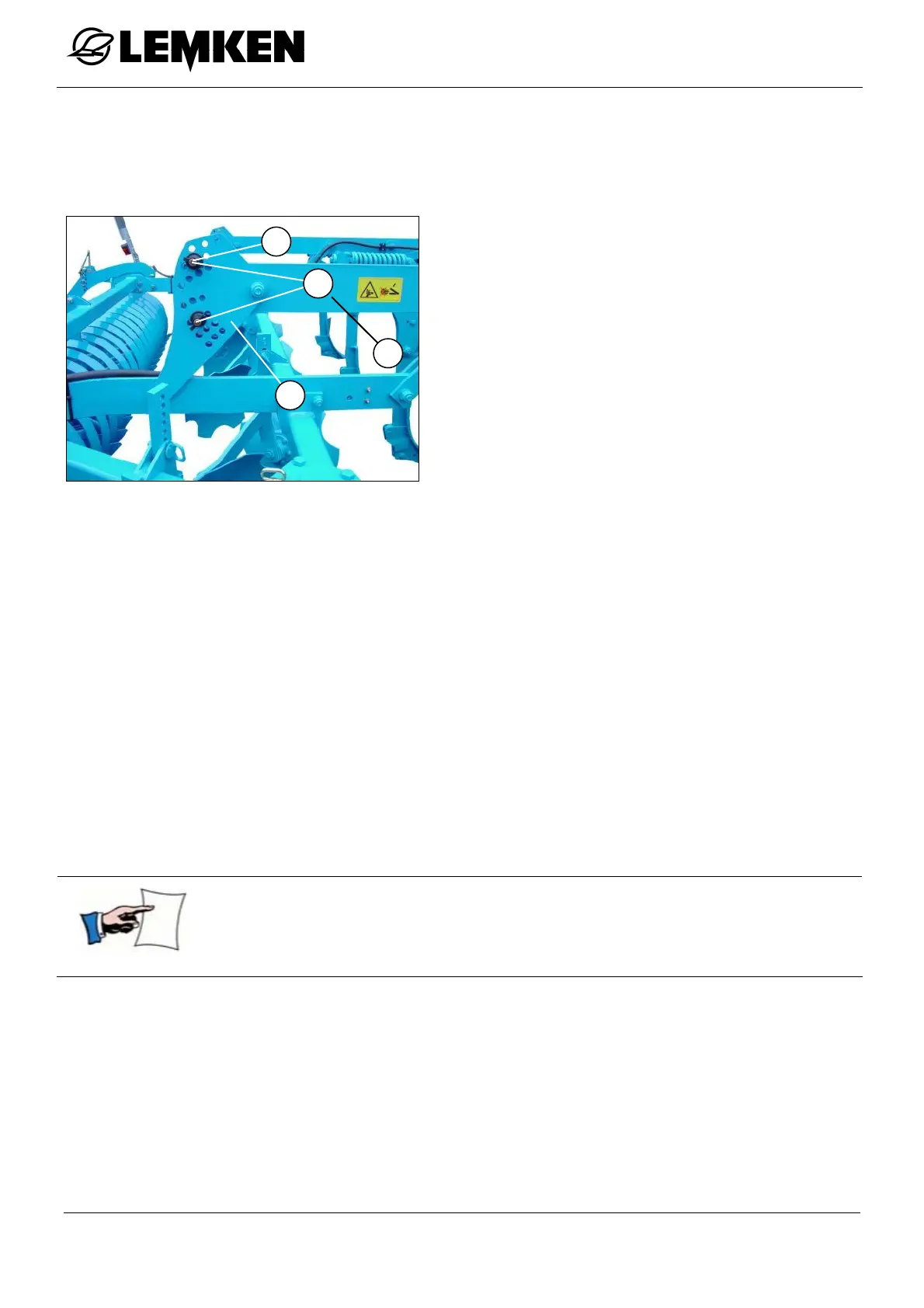

The working depth of the implement can
be adjusted by approx. 5 to 30 cm. This is
done using the guide pins (1).
Raise the implement using the three-
point hydraulics on the tractor.
Release the lower guide pins (1) by re-
moving the securing pins.
Insert the lower guide pin (1) in a hole in the adjusting plates (2) corresponding
to the desired working depth.
Lower hole => Greater working depth
Higher hole => Less working depth
Insert the implement. When the working depth is reached, the load on the upper
guide pins (3) is relieved.
Insert the upper guide pins (3) directly above the carrier (4) so that the weight of
the rollers provides additional support for the implement's penetration. Raising
the implement increases the clearance between the rollers and the ground.
Secure the guide pins by inserting the securing pins.
If the implement features feeler wheels, they must also be ad-
justed if the working depth is changed. See "Feeler wheels" sec-
tion.
2
1
3
4
