Lennox KGB Series User Manual

Page 51
TABLE 7 580708-02
KGB/KCB024 Normal Operating Pressures
Outdoor Coil Entering Air Temperature
65 °F 75 °F 85 °F 95 °F 105 °F 115 °F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
113 220 114 255 116 302 116 355 118 416 122 498
121 223 123 253 145 296 125 354 129 411 129 492
139 234 143 256 145 299 145 343 146 400 148 460
160 233 164 261 167 300 169 345 171 397 172 458
60
70
80
90
100
110
120
110 120 130 140 150 160 170
Liquid Temperature (° F)
Suction Pressure (psig)
Outdoor Temperature (°F)

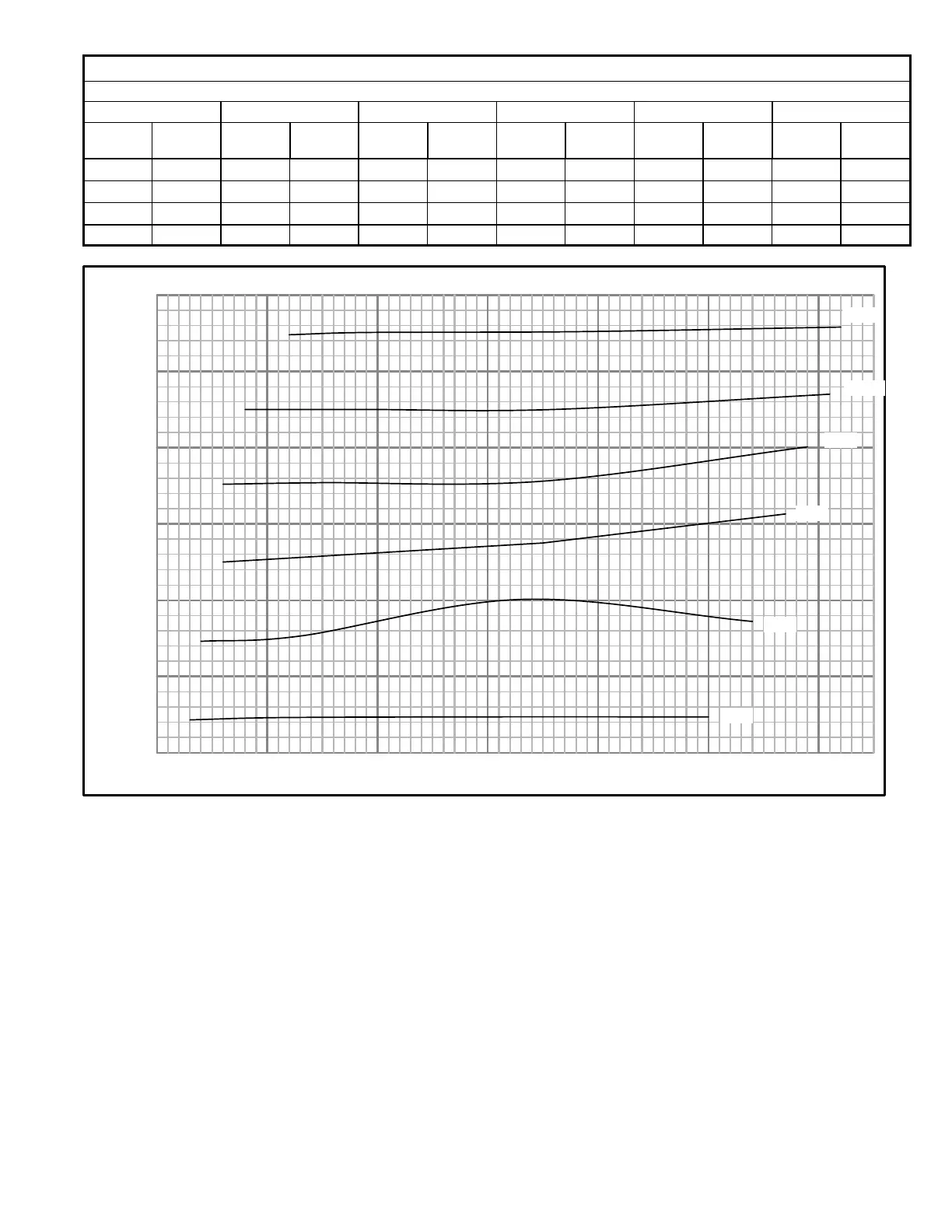

KGB/KCB 024 Charging Curves
115°
105°
95°
85°
75°
65°
580708-02
