TABLE 14 580544-02
KGB/KCB 090 Normal Operating Pressures
Outdoor Coil Entering Air Temperature
65 °F 75 °F 85 °F 95 °F 105 °F 115 °F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
102 259 104 298 106 341 108 390 109 441 112 506
109 264 111 303 113 347 116 396 118 450 121 516
122 275 127 315 131 359 133 410 138 460 143 518
135 289 140 327 145 370 151 421 155 470 163 533
60
70
80
90
100
110
120
130
100 110 120 130 140 150 160
Liquid Temperature (° F)
Suction Pressure (psig)
Outdoor Temperature (°F)

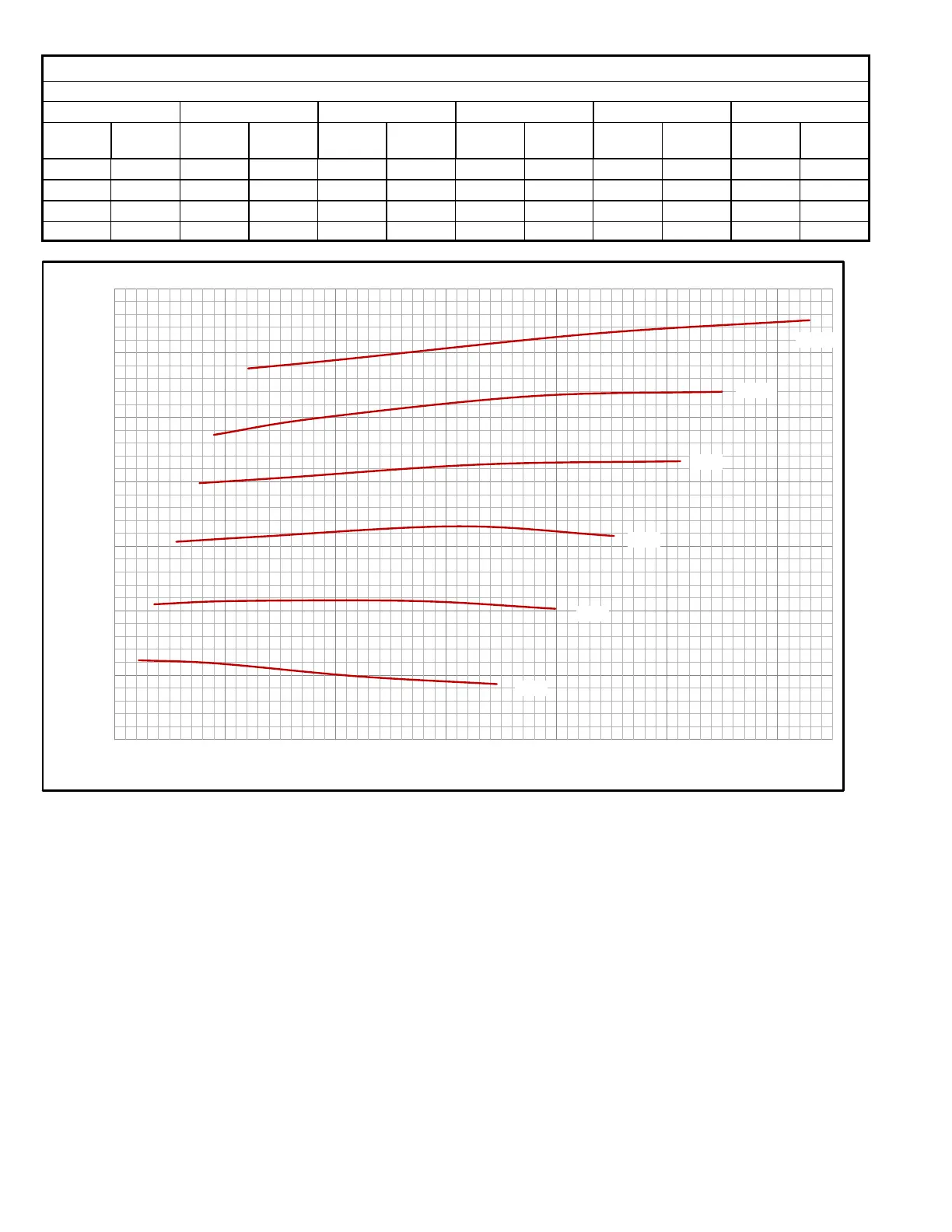

KGB/KCB 090 Charging Curves
115°
105°
95°
85°
75°
65°
580544-02
