Lennox KGB Series User Manual

Page 52
TABLE 8 580709-02
KGB/KCB030 Normal Operating Pressures
Outdoor Coil Entering Air Temperature
65 °F 75 °F 85 °F 95 °F 105 °F 115 °F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
114 222 115 262 117 309 120 367 122 474 126 575
123 221 124 258 125 306 128 355 130 434 134 568
143 228 144 260 148 301 150 348 151 404 172 473
161 237 165 270 167 310 171 356 174 407 178 458
60
70
80
90
100
110
120
110 120 130 140 150 160 170
Liquid Temperature (° F)
Suction Pressure (psig)
Outdoor Temperature (°F)

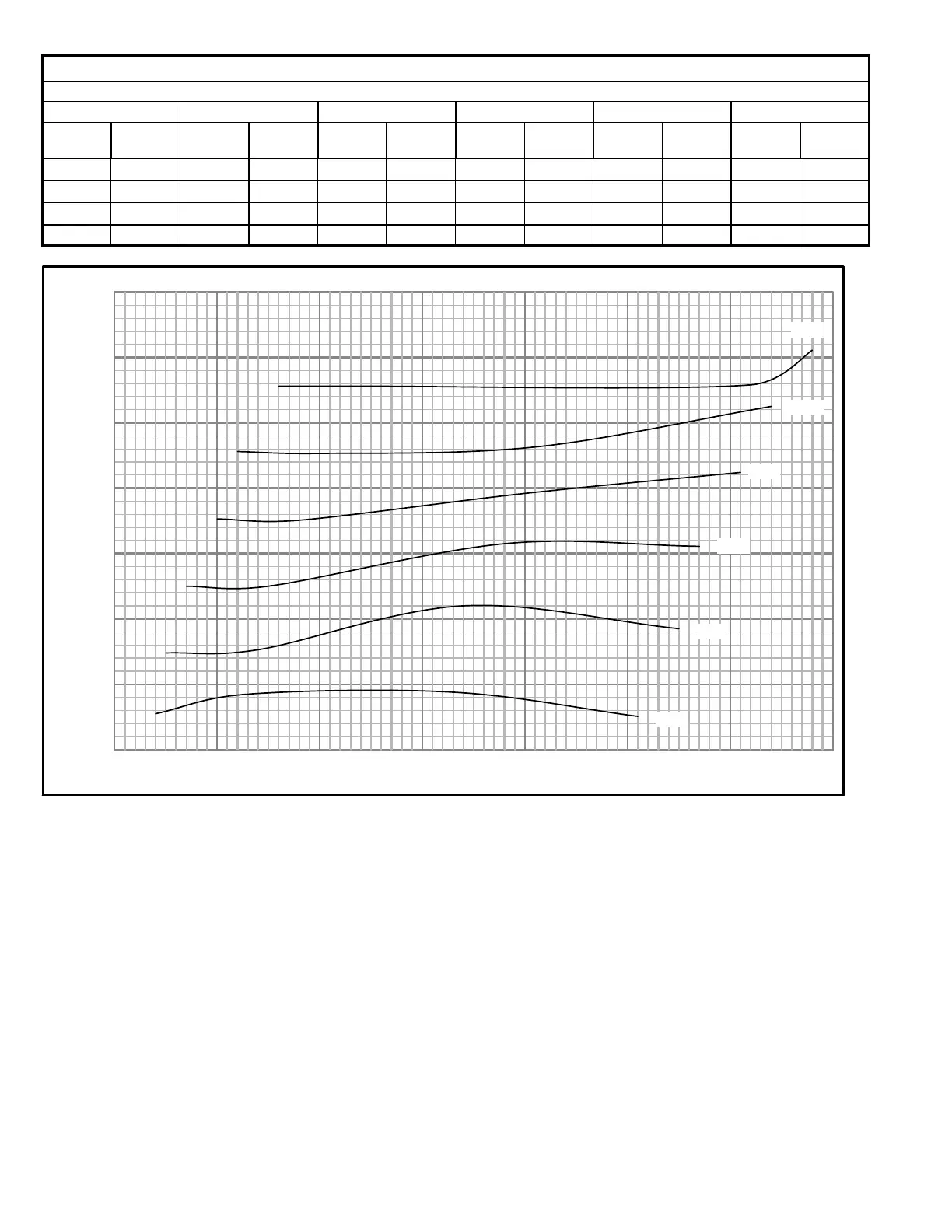

KGB/KCB 030 Charging Curves
115°
105°
95°
85°
75°
65°
180
130
580709-02
