TABLE 11 580712-02
KGB/KCB 060 Normal Operating Pressures
Outdoor Coil Entering Air Temperature
65 °F 75 °F 85 °F 95 °F 105 °F 115 °F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
110 235 112 275 113 323 115 382 117 463 120 561
119 239 121 278 122 325 124 381 126 455 128 547
137 248 140 286 143 329 145 377 147 432 148 503
155 263 160 298 163 339 167 385 170 438 173 498
60
70
80
90
100
110
120
130
Liquid Temperature (° F)
Suction Pressure (psig)
Outdoor Temperature (°F)

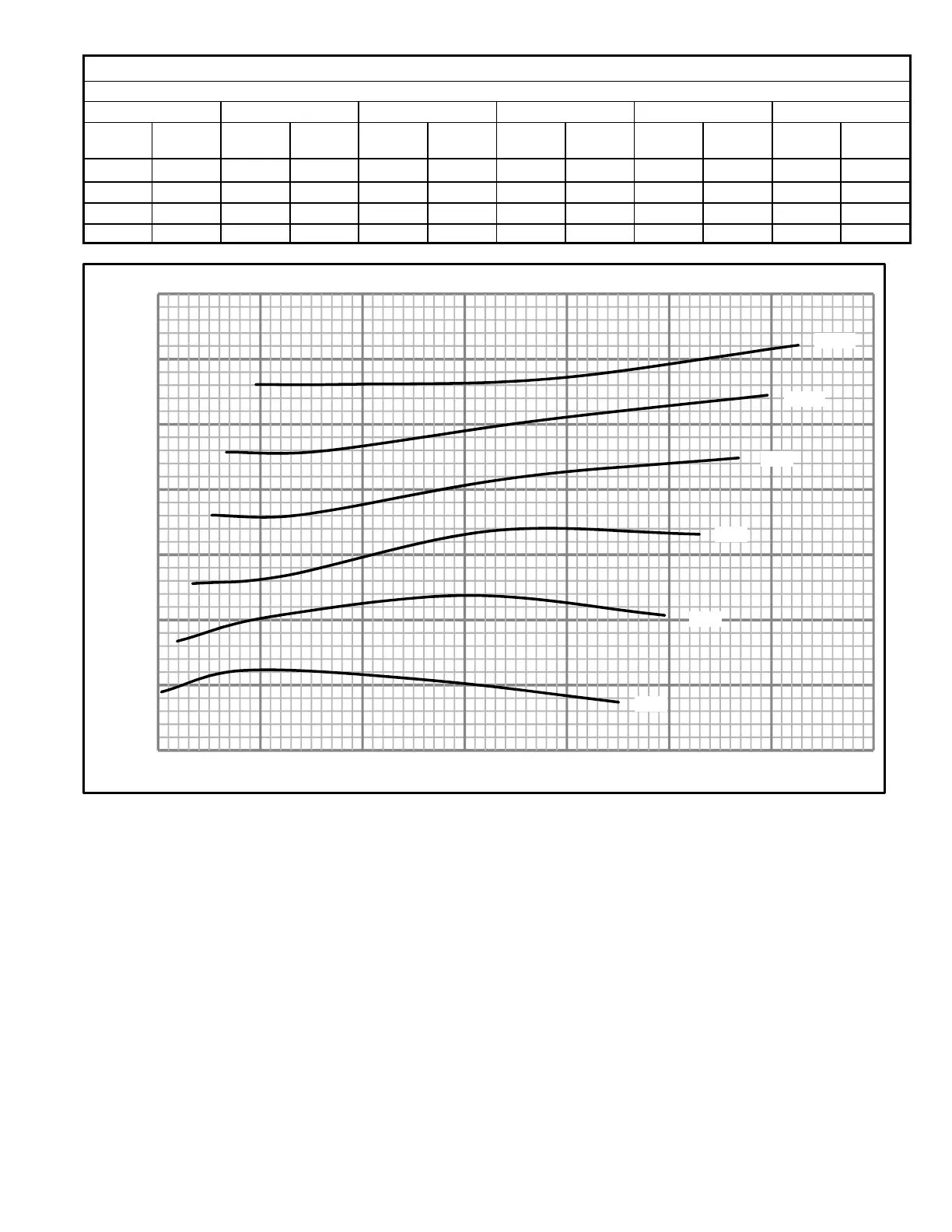

KGB/KCB 060 Charging Curves
115°
105°
95°
85°
75°
65°
110 120 130 140 150 160 170 180
580712-02
