TABLE 12 580996-01
KGB/KCB 072H Normal Operating Pressures
Outdoor Coil Entering Air Temperature
65 °F 75 °F 85 °F 95 °F 105 °F 115 °F
113 261 115 300 116 347 118 402 119 492 123 512
122 266 124 307 126 349 126 402 128 467 132 518
140 277 143 316 145 360 147 411 149 472 151 540
159 291 161 329 164 375 168 423 172 478 174 537
Suction Pressure (psig)
105°
95°
115°
85°
75°
65°
Outdoor Temperature (°F)

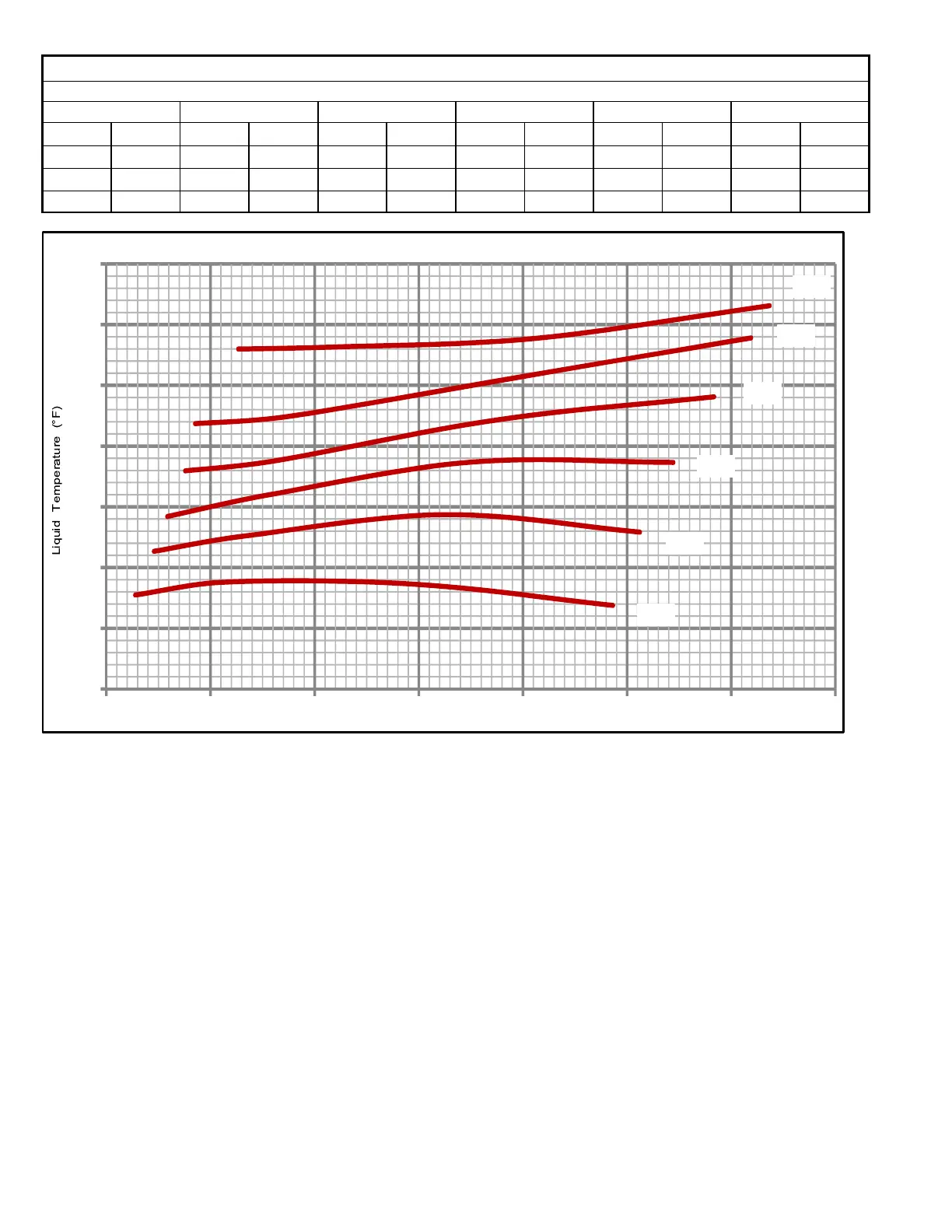

KGB/KCB 072 Charging Curves
60
70
80
90
100
110
120
130
110 120 130 140 150 160 170 180
580996-01
