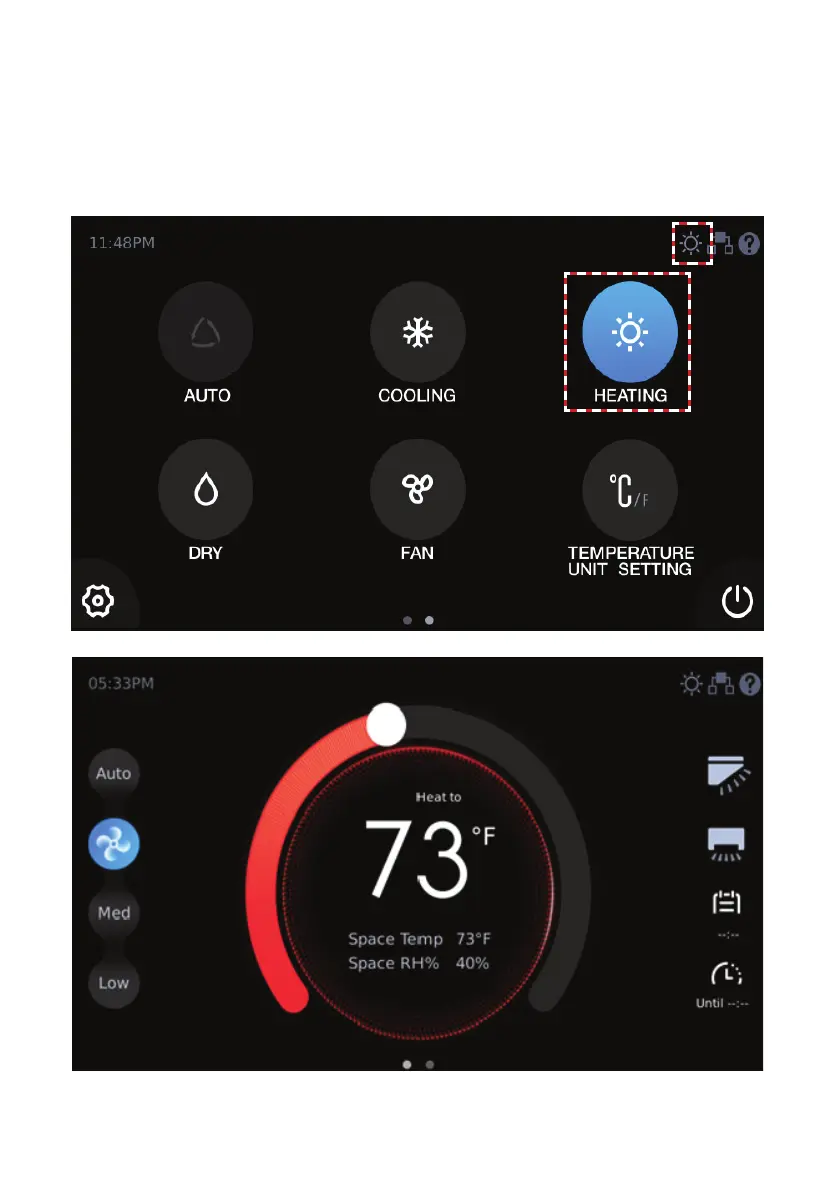

Figure 13. Heating Mode Operation

Heating Mode Operation

When the indoor unit is powered on, tap HEATING in the operating mode selection interface. The

selected icon will illuminate when the indoor unit runs in Heating mode. The Heating icon is dis-

played in the upper right corner of the home page.

To adjust the setpoint, tap the setpoint slider and drag the slider to the new setpoint temperature.

The default setpoint range is 62°F to 86°F (17°C to 30°C).
