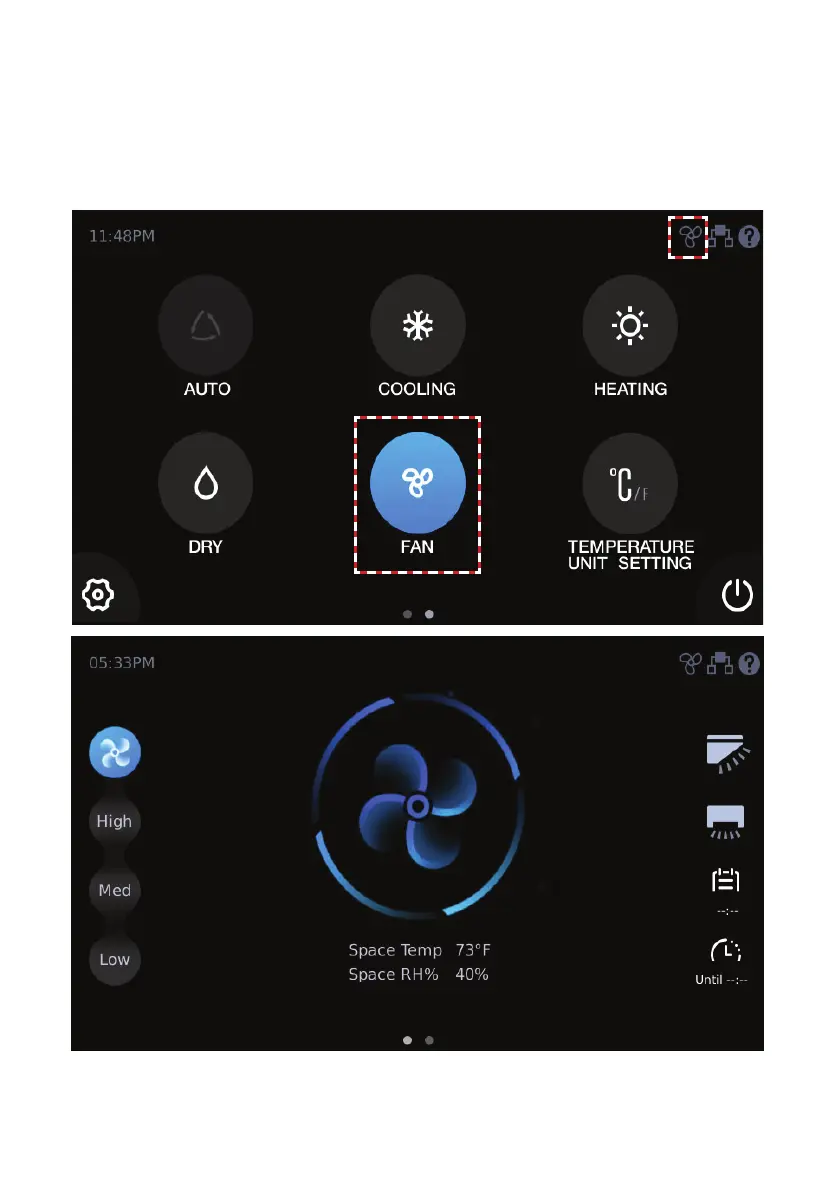

Figure 17. Fan-Only Mode Operation
Fan-Only Operation
When the indoor unit is powered on, tap F
AN in the operating mode selection interface. The se
-
lected icon will illuminate when the indoor unit runs in Fan mode. The Fan icon is displayed in the
upper right corner of the home page.
The indoor unit fan operates without heating or cooling.
