70
Room T
emperature Sensor Settings

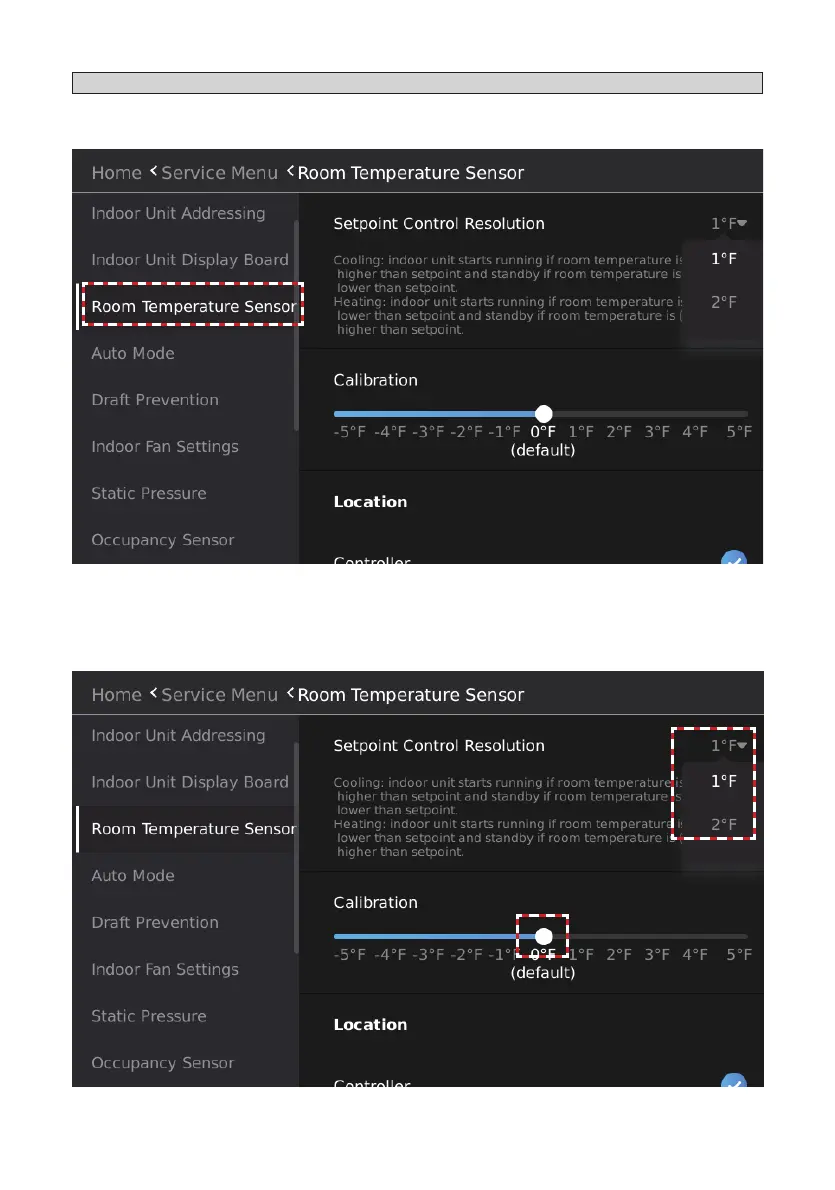

1.
T
ap the Room T
emperature Sensor button to access the room temperature sensor settings
screen.
2.
T
ap the drop-down button on the right of Setpoint Control Resolution and select the return
dierence temperature.
3.
Slide the Calibration button and select the room temperature calibration value.
Figure 92. Room T
emperature Sensor Settings
Figure 93. Room T
emperature Control Resolution & Calibration
69
71
Table of Contents
General
1
Requirements
1
Shipping and Packing List
1
Tools Needed
1
Controller Placement
1
Table of Contents
2
Installation
4
Connecting to One Indoor Unit
5
Connecting to Multiple Indoor Units
6
Mounting the Controller
7
Home Screen Display
10
Operation
14
On/Off
14
Error Code Display
15
Mode Settings
16
Cooling Mode Operation
16
Heating Mode Operation
17
Auto Mode Operation
18
Dry Mode Operation
20
Fan-Only Operation
21
Temperature Setpoint
22
Space Temperature and Space Humidity Display
23
Temperature Unit Switching (ºF/ºC)
24
Fan Speed
25
Swing
26
Weekly Schedule Settings Quick Access
27
Override Settings
28
Schedule Management
29
Setup Schedule Templates
31
Paste a Schedule
32
Copy and Paste a Schedule Template
32
Copy a Schedule
32
Rename a Schedule Template
34
Delete a Schedule Template
35
Add a Daily Schedule Action
36
Delete a Daily Schedule Action
37
Rename a Daily Schedule Action
37
Edit a Daily Schedule Action
38
Setup a Weekly Schedule
39
Tap the Add Button
40
Rename a Weekly Schedule
41
Delete a Weekly Schedule
42
Modify a Weekly Schedule
43
Select the Weekly Schedule to Use
44
Setup Holiday and Special Day Schedules
45
Add a Holiday and Special Day Schedule
46
Rename a Holiday and Special Day Schedules
47
Modify a Holiday and Special Day Schedules
48
Delete a Holiday and Special Day Schedules
49
Override Scheduled Settings
50
General Settings Configuration
52
Time Format Settings
53
Time Settings
53
Theme Settings
54
Brightness Settings
54
Controller Touch Tone (Sound) Settings
55
Standby Interface (Screen Saver) Settings
56
Standby (Screen Saver) Duration Settings
57
Swing Angle Settings
58
Daylight Savings Time Settings
58
Room Temperature and Humidity Display Settings
61
Contractor Information Input
62
Service Menu
63
Access Service Menu
63
Change Password
64
Master / Sub Wired Controller Settings
65
Master / Sub Wired Controller Operation
66
Indoor Unit Address Settings
68
Indoor Unit Display Board & Buzzer (Sound) Settings
69
Room Temperature Sensor Settings
70
Auto Mode Settings
72
Draft (Cold Blow) Prevention Settings
74
Stand-By Fan Speed Settings
75
Indoor Unit Static Pressure Settings
76
Occupancy Sensor Function Settings
77
Dry Mode Settings
78
Auxiliary / Alternate Heat Settings
79
Setpoint Limit Settings
81
Locking Function Settings
82
Advanced Information
83
Device Operation Information Query
84
Device Operation Error History Query
86
HHE Dry Contact Relay Interface Status Query
90
Controller Information
91
Firmware and Setting Information
92
Software Version
93
Controller Software Update
94
Indoor Unit Software Update
96
Setting Parameters Backup
99
Setting Parameters Import
100
Reset Settings
101
Help
102
Get On-Screen Help
102
5
