Indoor Unit Static Pressure Settings
Set the indoor unit static pressure. Ducted units only
.
1.
T
ap the Static Pressure button to enter the static pressure settings screen.
2.
Slide the static pressure selection button and select the static pressure setting.
NOTE -
Requires a one-to-one connection to the indoor unit.

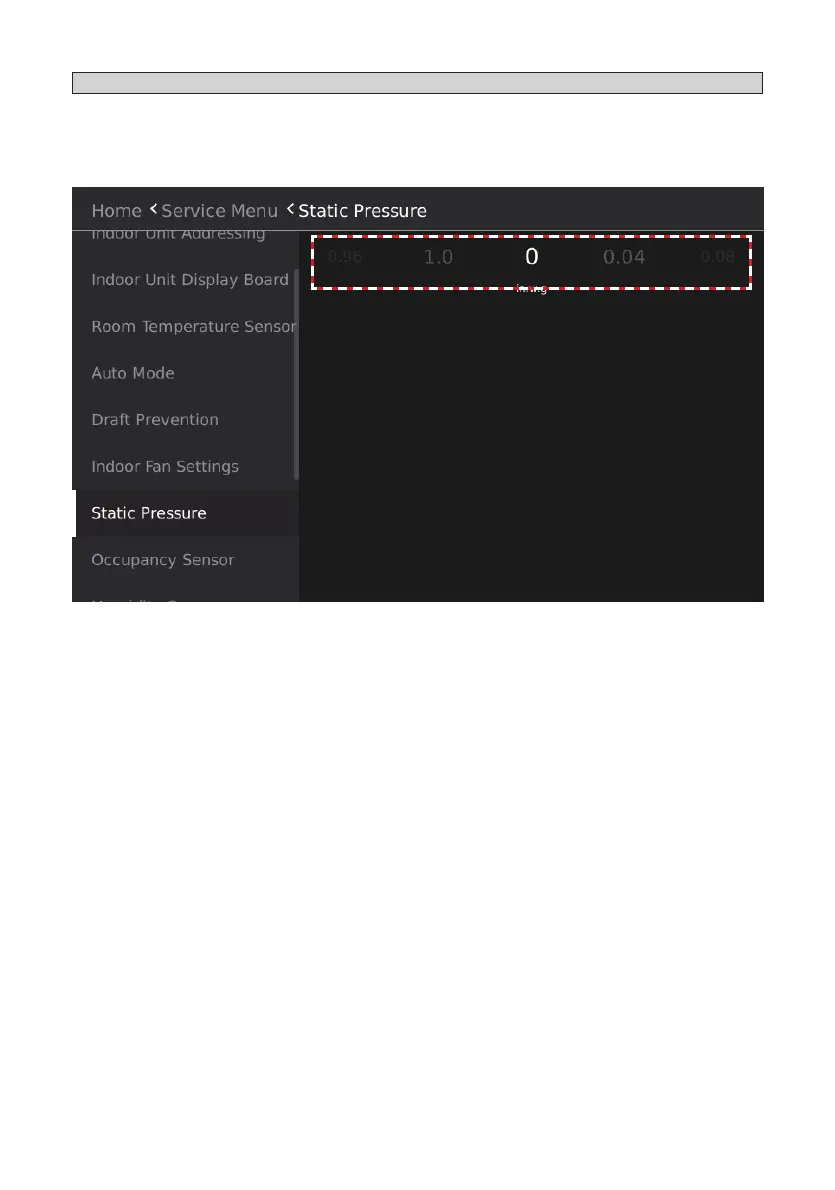

Figure 100. Static Pressure Settings
