10.Notetheorientationofthenewbackplaneandpositionitonthechassissothatthehooks1onthe
chassispassthroughthecorrespondingholesinthenewbackplane.Then,carefullypressthenew
backplanestraightdownuntilitissecuredinplacebythesmallretainingstudsonthechassis.

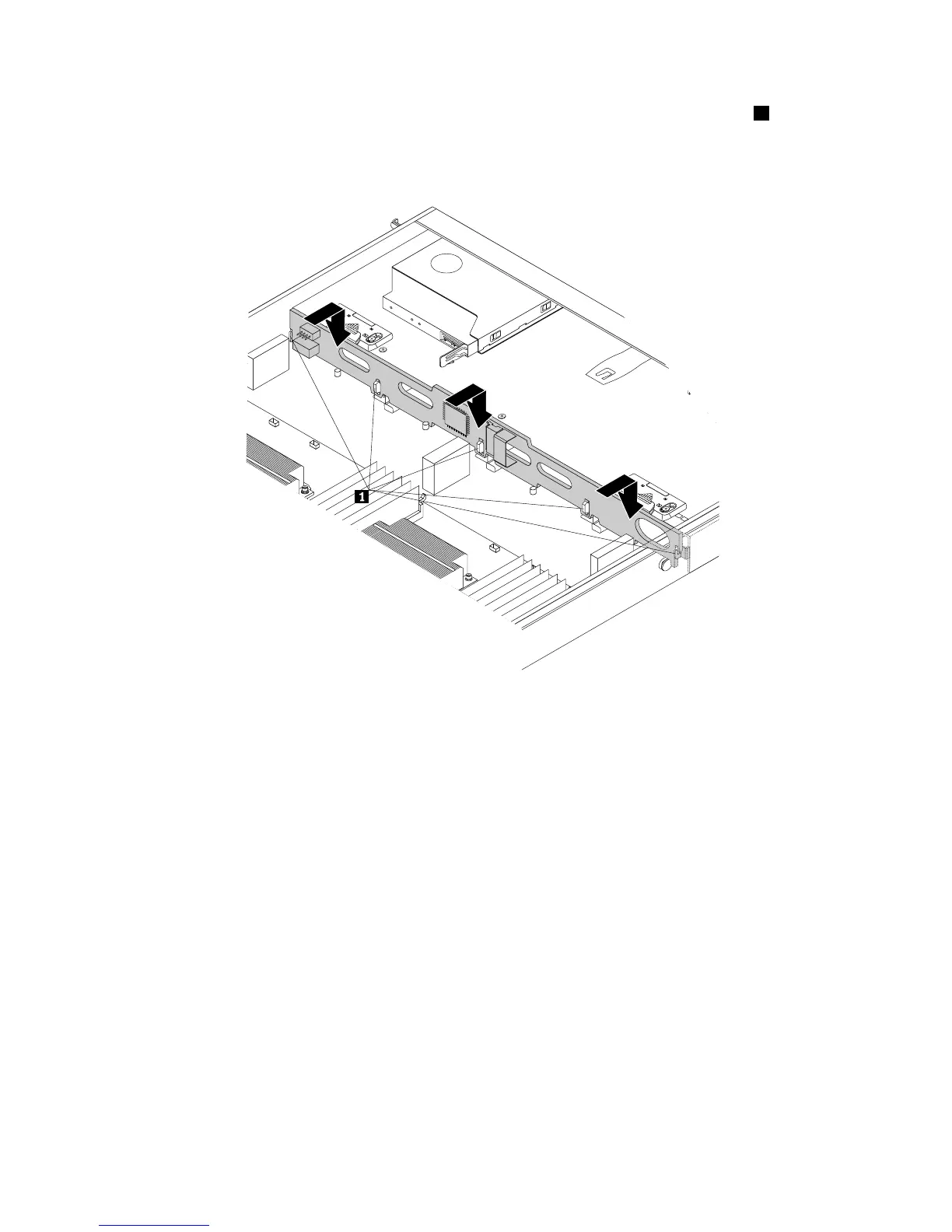

Figure87.Installingthebackplane
136ThinkServerRD330HardwareMaintenanceManual
