3.GentlypressthetabontheThinkServerRAIDSuperCapacitorModulebracketasshownandremove

theThinkServerRAIDSuperCapacitorModulefromthebracketatthesametime.

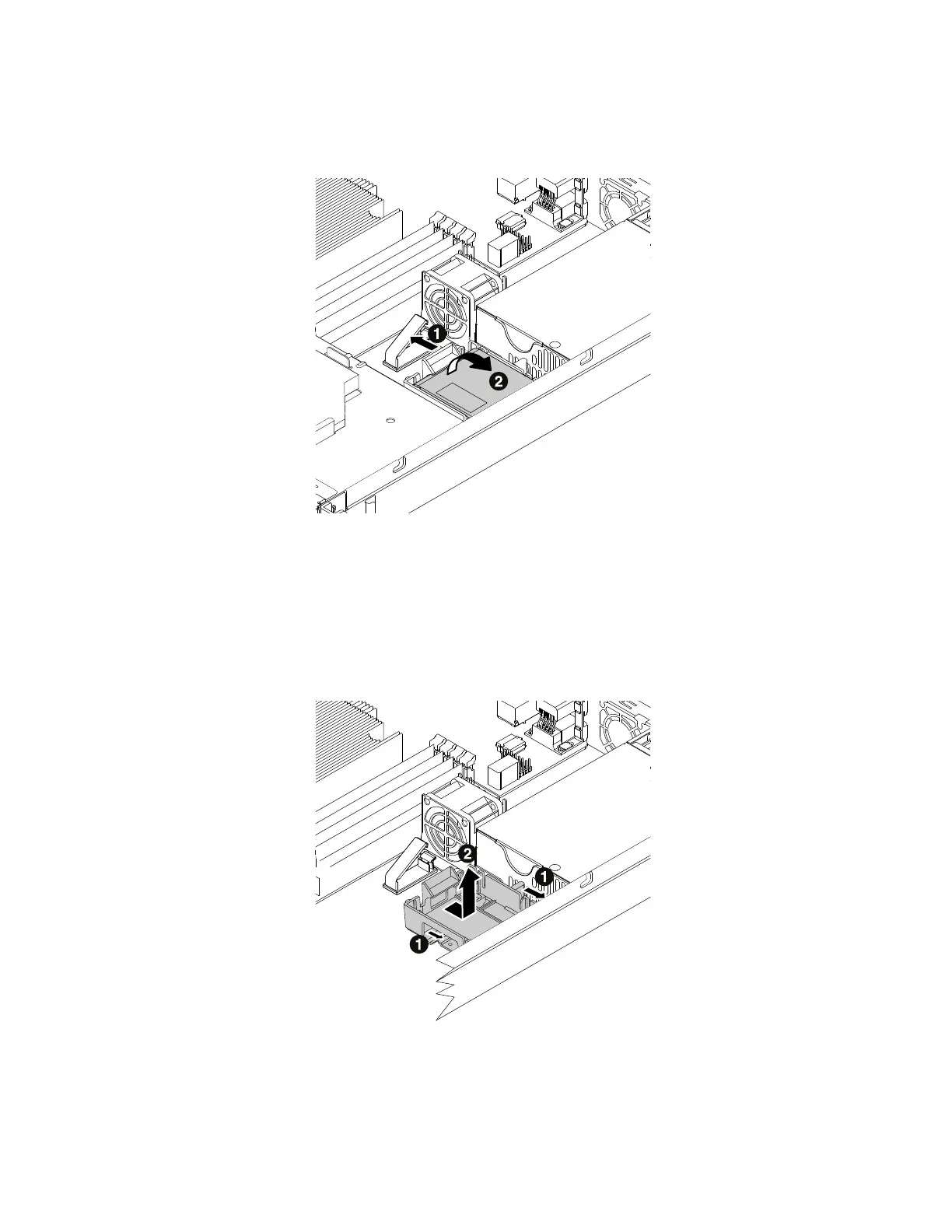

Figure67.RemovingtheThinkServerRAIDSuperCapacitorModulefromthebracket

4.GentlypressthetwotabsontheThinkServerRAIDSuperCapacitorModulebracketandremove

thebracketatthesametime.

Note:SkipthisstepifyouarejustinstallinganewThinkServerRAIDSuperCapacitorModuleinsteadof

boththeThinkServerRAIDSuperCapacitorModuleanditsbracket.

Figure68.RemovingtheThinkServerRAIDSuperCapacitorModulebracketfromthechassis

86ThinkServerRS160UserGuideandHardwareMaintenanceManual
