Process data transfer
Port interconnection of process data objects (PDO)
44
Lenze · Decentralised frequency inverter 8400 motec (CANopen option) · EDS84DMOTCAN EN 4.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.2 Port interconnection of process data objects (PDO)
The preconfigured port interconnection of the process data objects is activated by setting code
C00007 = 40: Network (MCI/CAN).

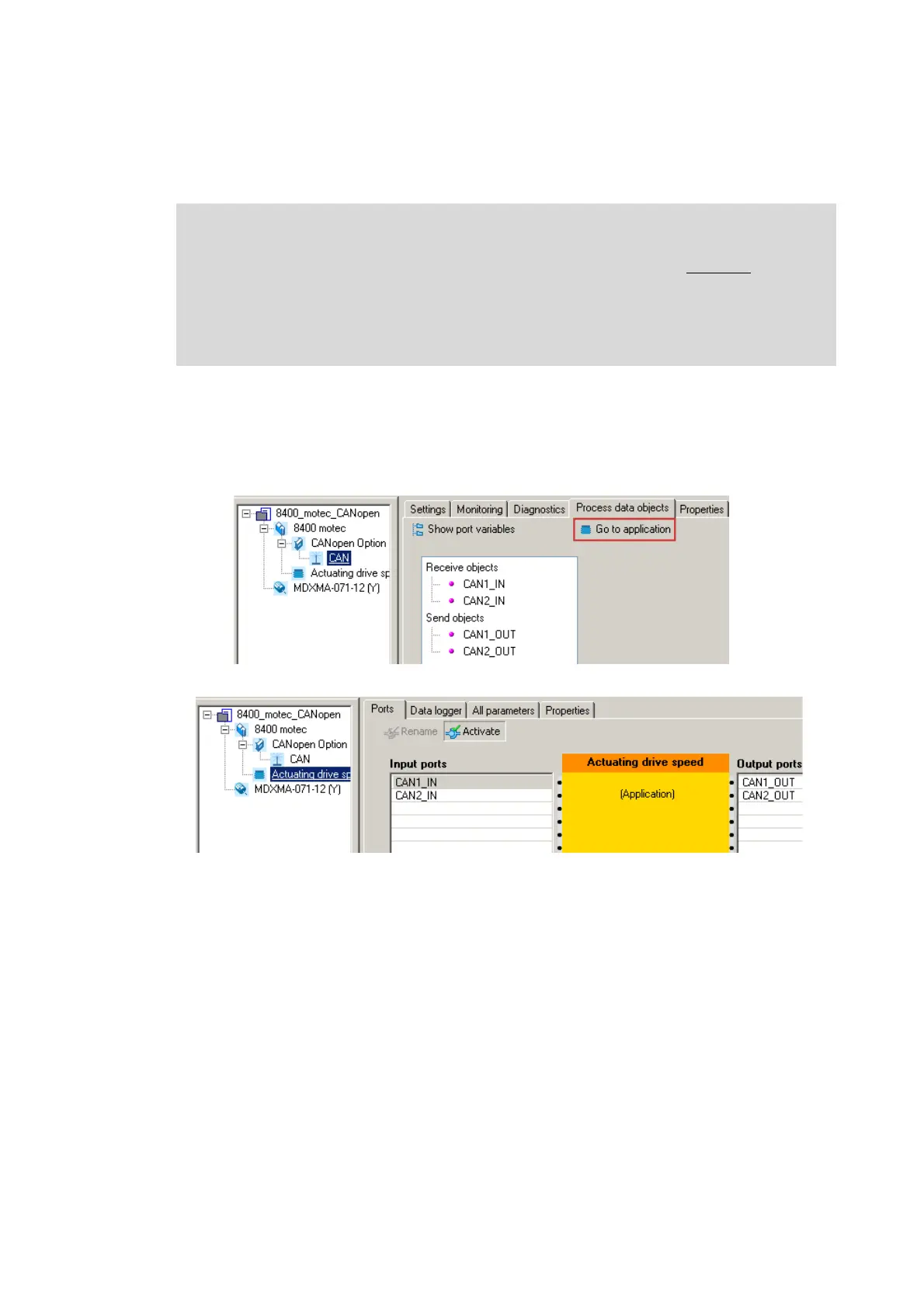

 How to freely configure the port interconnection in the »Engineer«:
1. Go to the Process data objects tab and click Go to application.
2. The Ports tab displays the port blocks CAN1_IN/CAN2_IN and CAN1_OUT/CAN2_OUT.
 Note!
The »Engineer« screenshots shown on the following pages are only examples for the
setting sequence and the resulting screens.
Depending on the software version of the inverter and the version of the »Engineer«
software installed, the screenshots in this documentation may differ from the actual
»Engineer« screens.
