Wiring of the standard device
Control terminals
Important notes
5
5.5
5.5.1
5.5−2
EDSVF9383V EN 6.0−11/2009
Stop!
ƒ Connect or disconnect the terminal strips only if the controller
is disconnected from the mains!
ƒ Wire the terminal strips before connecting them!
ƒ Unused terminal strips must also be plugged on to protect the
contacts.

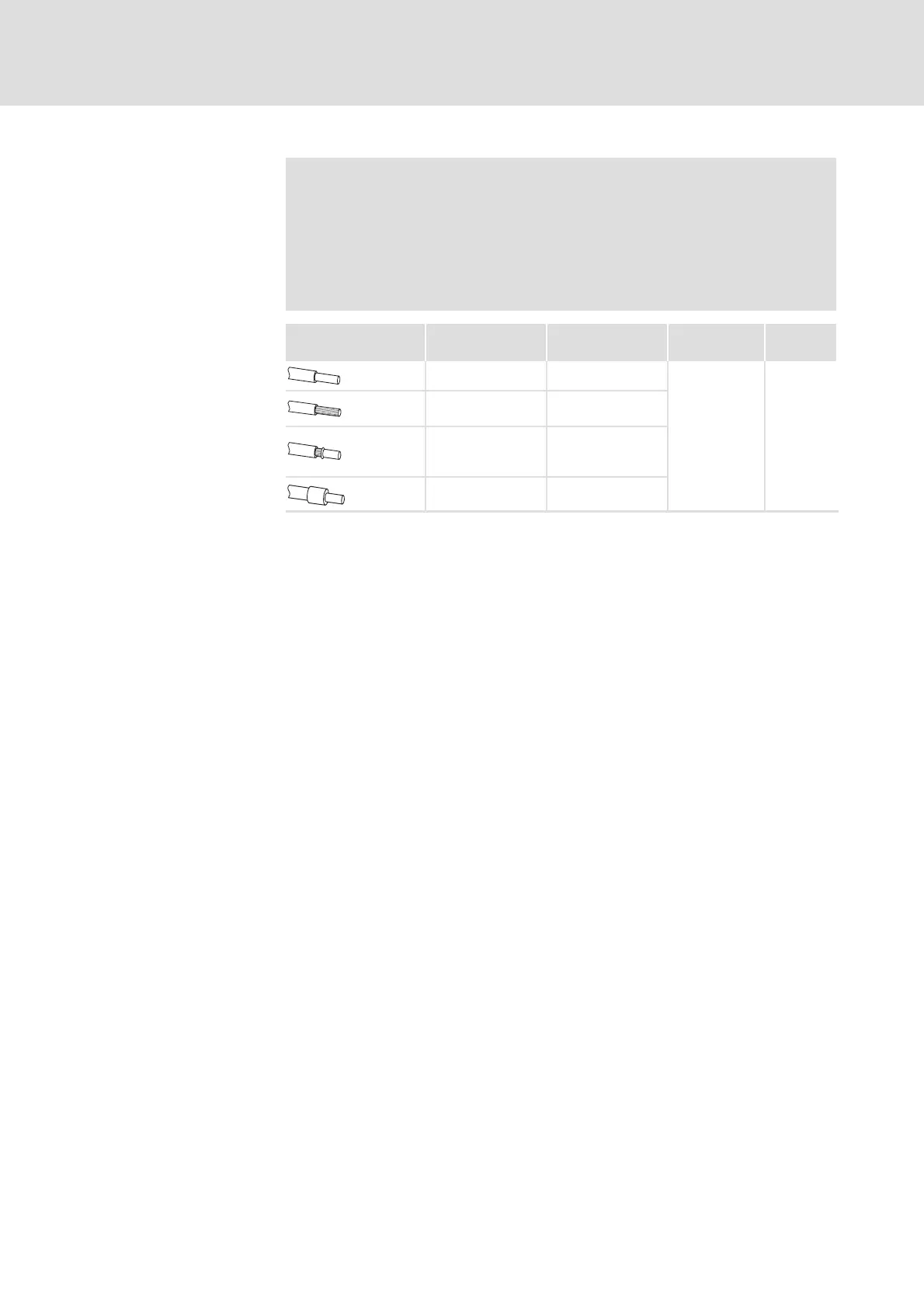

Cable type Wire end ferrule Maximum cable
cross−section
Tightening
torque
Stripping
length
Rigid — 2.5 mm
2
(AWG 14)
0.5 ... 0.6 Nm
(4.4 ... 5.3 lb−in)
5 mm
Flexible
Without wire end
ferrule
2.5 mm
2
(AWG 14)
Flexible
Wire end ferrule
without plastic
sleeve
2.5 mm
2
(AWG 14)
Flexible
Wire end ferrule
with plastic sleeve
2.5 mm
2
(AWG 14)
Terminal data
