Mechanical installation
Important notes
4
104
EDK82EV222 DE/EN/FR 13.0
4 Mechanical installation
Important notes
Warnings!
The scope of supply of the controller includes a label with the following text: "Suitable
for use on a circuit capable of delivering not more than ...".
If the controller is used in systems in accordance with UL, stick this label on the
controller before mounting. Select the position so that no ventilation hole and no
cooling ribs are covered.

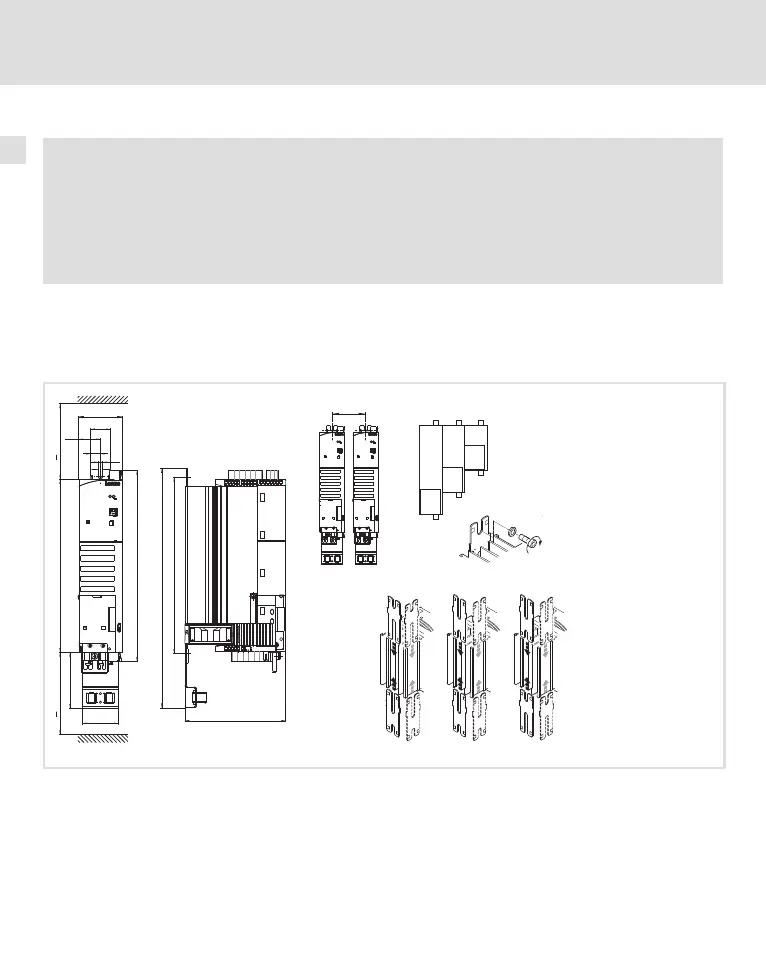

Mounting by means of fixing rails
For this mounting variant you require the controller type E82EV...
b1
b2
g
k
c
a
c2
b3
>100 mm
>100 mm
123
M6
4Nm
35 lbin
e
d
b
c1
0
8200vec004
Different sizes can only be mounted side by side when the smaller units are mounted to the right−hand−side of
the bigger units!
