Extensions for automation
Modules
Mounting and dismounting communication modules
6
132
EDK82EV222 DE/EN/FR 13.0
Mounting and dismounting communication modules
Note!
Communication modules can be supplied by an internal or external voltage source. An
external voltage source is only required if communication to a node is to be maintained
in the case of a switch−off or if the node fails.
Mounting

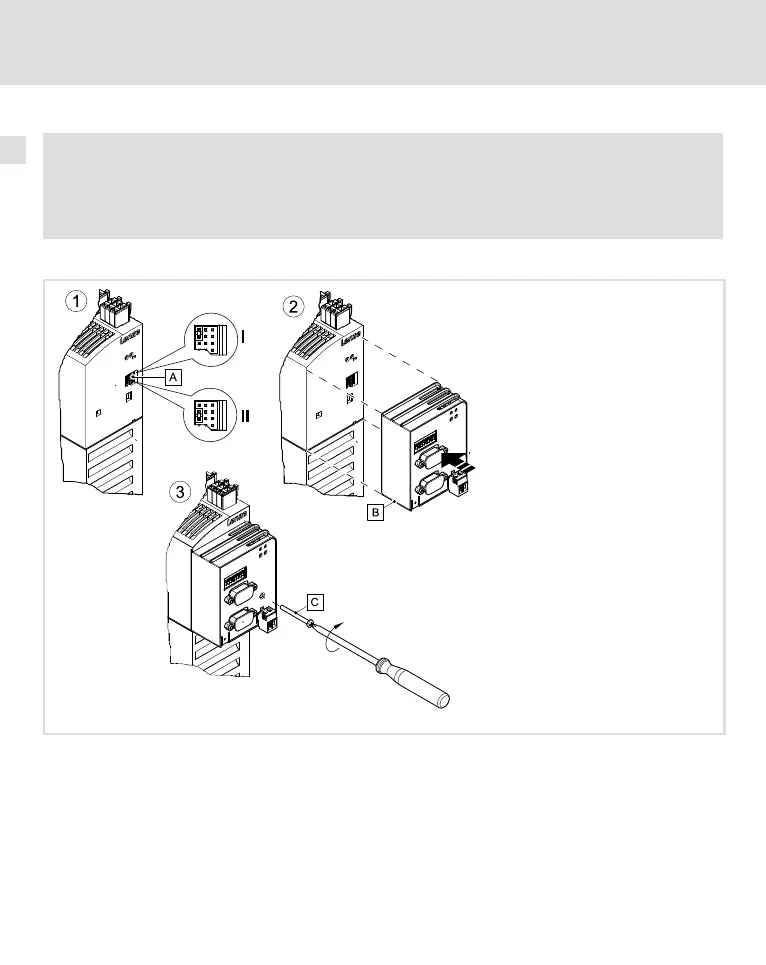

8200vec606
1. Set the type of voltage supply via the jumper .
Position I: external voltage supply (delivery status; +24 V DC ±10%, max. 100 mA per
module)
Position II: voltage supply via the internal voltage source
2. Plug the communication module to the AIF interface on the controller.
3. If the communication module is provided with a safety screw , screw the module together
with the controller.
