Mechanical installation
Mounting with thermal separation (push−through technique)
4

107
EDK82EV222 DE/EN/FR 13.0
Cutout in the control cabinet
Dimensions [mm]
8200 vector a
1
b
1
Frame
E82DV251K2C
61
101 E82ZJ007V
E82DV371K2C
E82DV551KxC
161 E82ZJ003
E82DV751KxC
Mounting
3.
3.
2.
1.
1.
4.
5.
E82DV_001

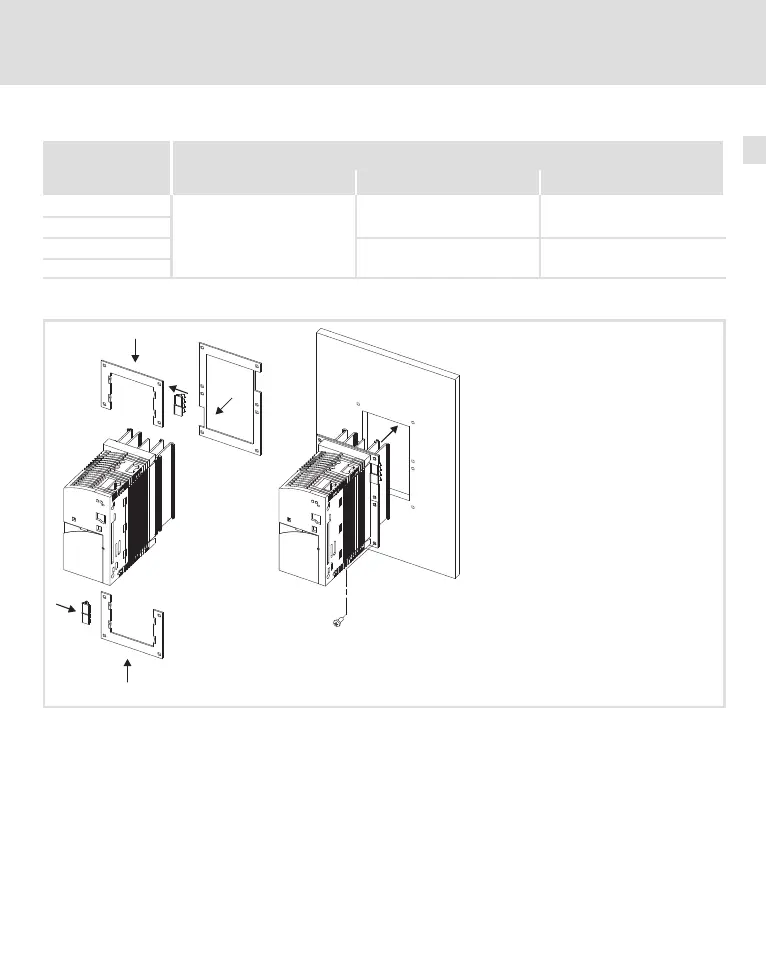

1. Slide on frame.
2. Insert seal.
3. Slide earthing clamps on the frame with the correct sides:
– The contact springs have to point towards the rear panel of the control cabinet.
– The cutouts of the seal specify the positions.
4. Insert 8200 vector into cutout.
5. Tighten by means of 8 screws M4x10.
– Tightening torque: 1.7 Nm (15 lb−in)
