7.2.2 Installation and commissioning

YZ
y
z
T
V
S
U
d
ABbc
p
SH
P
R
G
P
a
r
a
C
o
d
e
M
e
n
u
0050
00
50.00_Hz
MCTRL-NOUT
E82ZWLxxx
YZ
y
z
T V
S
U
dABbc
p
SHPRG
Para
Code
Menu
0050
00
50.00_Hz
MCTRL-NOUT
E82ZBBXC
EMZ9371BC
YZ
y
z
T V
S U
dABbc
p
SHPRG
Para
Code
Menu
0050
00
GLOBAL DRIVE
Init
YZ
y
z
T V
S U
d
0050
00
50.00 Hz
20 %
YZ
y
z
T V
S U
d
0050
00
50.00 Hz
20 %



dABbc
0
1
2
3
9371BC018

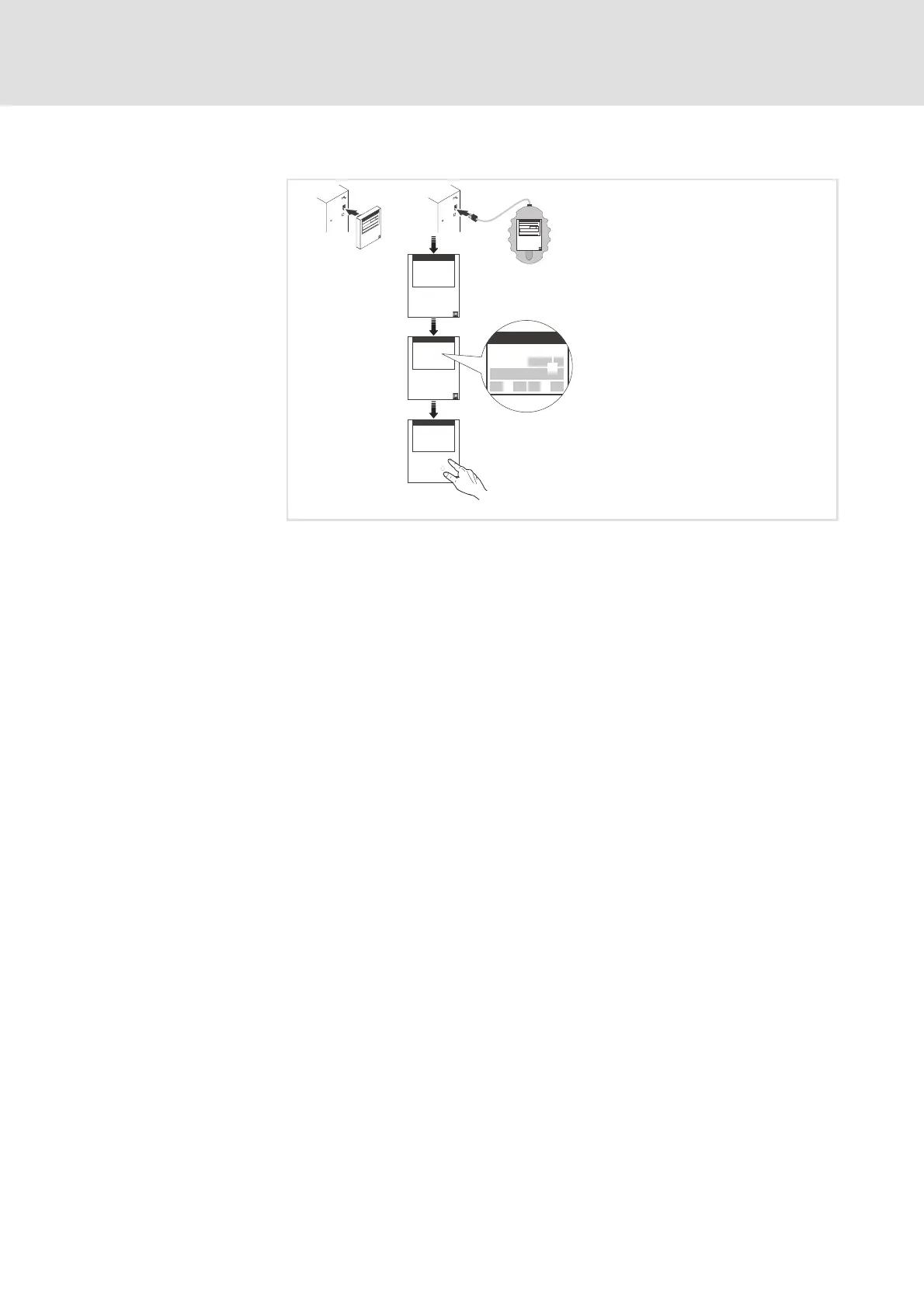

Fig. 7.2-1 Installation and commissioning of XT EMZ9371BC keypad or E82ZBBXC diagnosis
terminal
c
Connect keypad on the front of the controller to the AIF interface.
It is possible to connect the keypad and remove it during operation.
d
As soon as the keypad is supplied with voltage, it carries out a short self-test.
e
The operation level indicates, when the keypad is ready for operation:
 Current state of the controller
 Memory location 1 of the user menu (C0517):
Code number, subcode number, and current value
 Active fault message or additional status signal
 Current value in % of the status display defined in C0004
f
 must be pressed to leave the operation level
