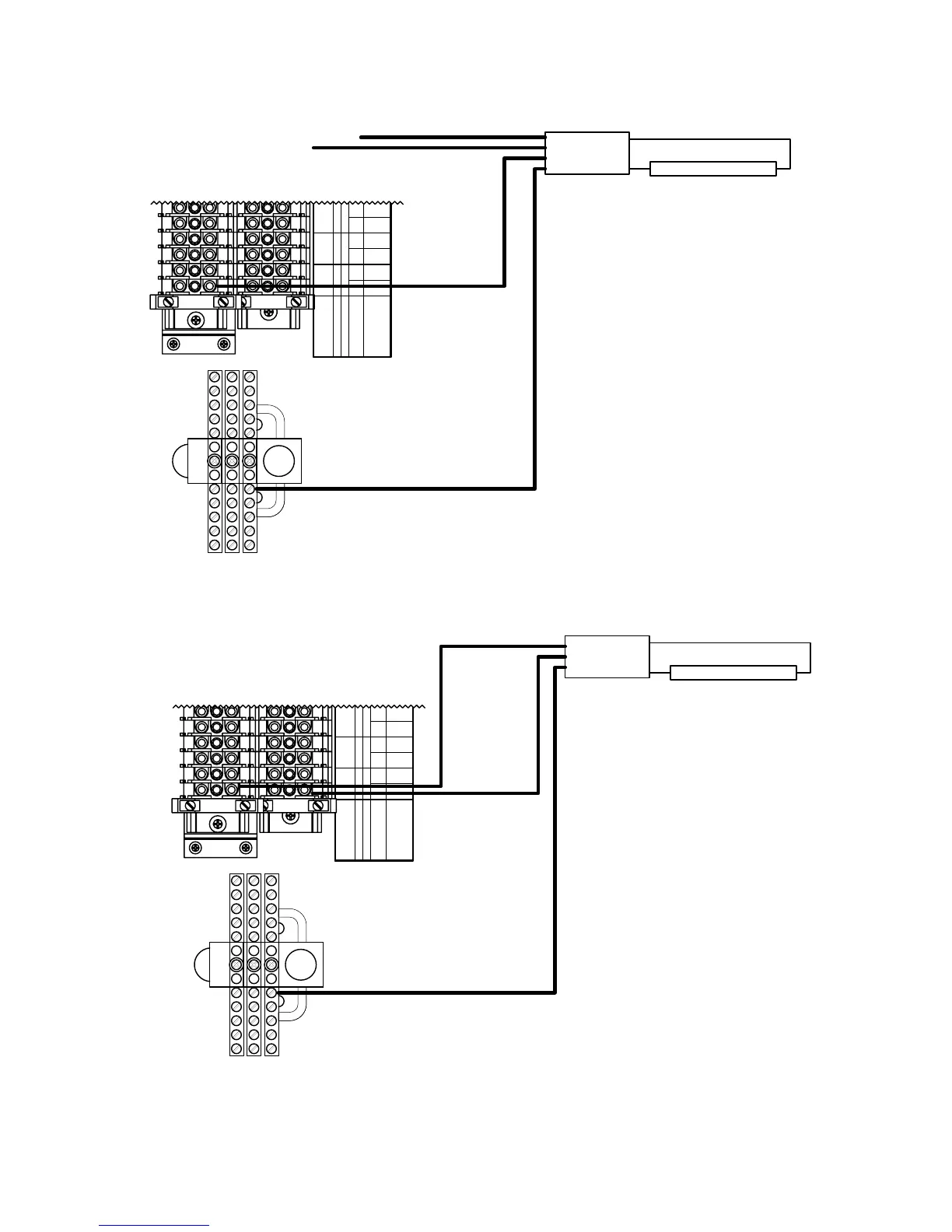

Figure 9 - Load Terminal Wiring for 0-10 VDC Control Dimming Ballasts
Figure 10 - Load Terminal Wiring for Lutron Hi-Lume or Eco 10
Lamp*
White - Neutral
Black - Switched Hot
Grey
Violet
Red
Blue
*Wiring Diagram of Fluorescent
Lamp for Illustrative Purposes
Only! Consult Individual Ballast
Wiring Diagram
SURFACE
MODULE
LOAD
12
11
10
22
24
23
20
21
19
SWITCHED
DIMMED
SWITCHED
DIMMED
SWITCHED
DIMMED
UPPER TERMINALS
LOWER TERMINALS
WRITABLE
NEUTRAL WHITE
HOT BLACK
DIMMED
HOTHOT
SWITCHED
NEUTRAL BLOCK
LAMP
BALLAST
GRAY
VIOLET
0-10 VDC
White - Neutral
Orange - Dimmed Hot
Black - Switched Hot
Lamp*
DH
SH
Red
Blue
*Wiring Diagram of Fluorescent
Lamp for Illustrative Purposes
Only! Consult Individual Ballast
Wiring Diagram
SURFACE
MODULE
LOAD
12
11
10
22
24
23
20
21
19
SWITCHED
DIMMED
SWITCHED
DIMMED
SWITCHED
DIMMED
UPPER TERMINALS
LOWER TERMINALS
WRITABLE
NEUTRAL WHITE
HOT BLACK
DIMMED
HOTHOT
SWITCHED
NEUTRAL BLOCK
LAMP
LUTRON
BALLAST
ORANGE
DIMMED HOT
