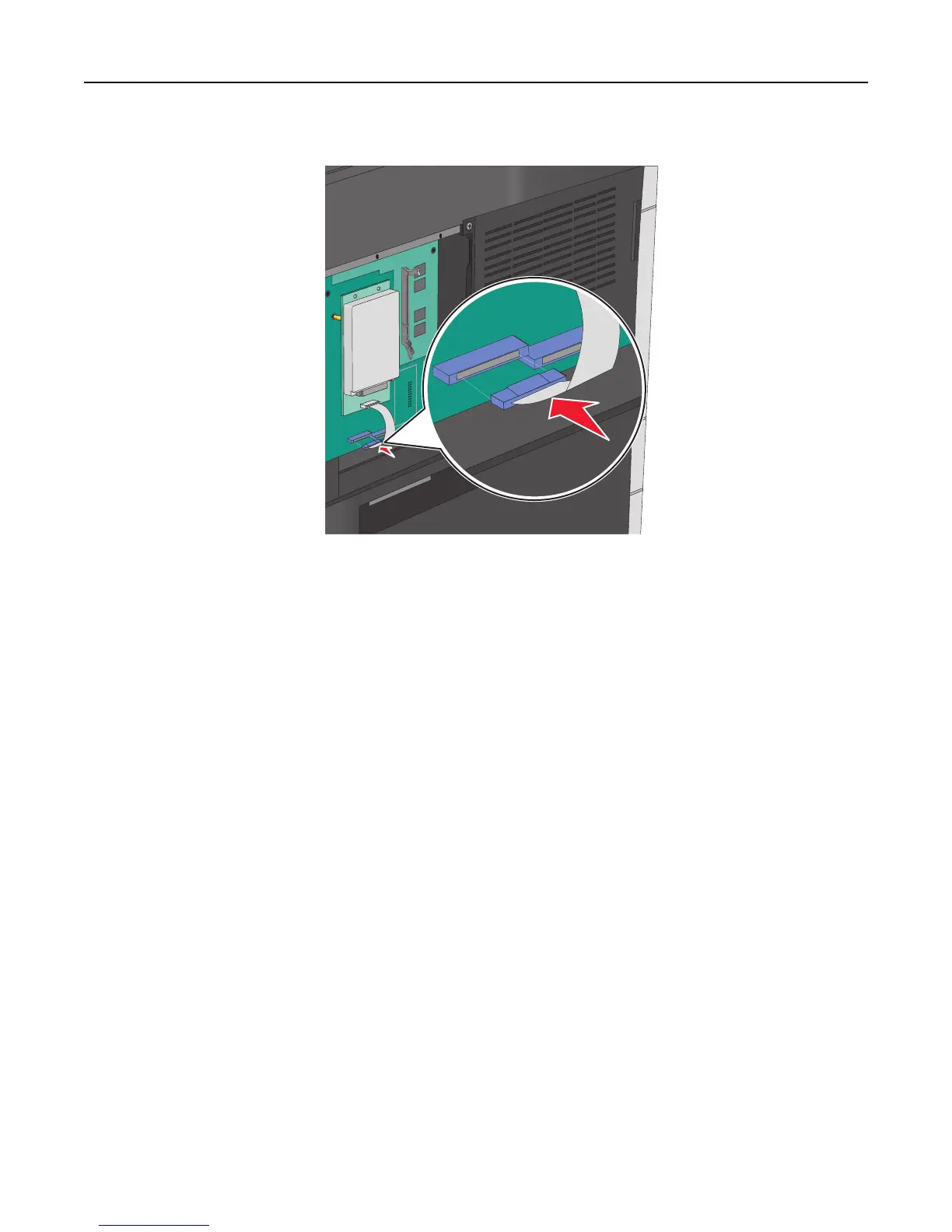

5 Insert the plug of the printer hard disk interface cable into the receptacle of the system board.
6 Reattach the system board cover.
Removing the printer hard disk
Note: This task requires a flathead screwdriver.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.
1 Access the system board.
For more information, see “Accessing the system board” on page 27.
Notes:
• This task requires a flathead screwdriver.
Additional printer setup 40
