5
Chapter 1: Getting Started
Getting Started

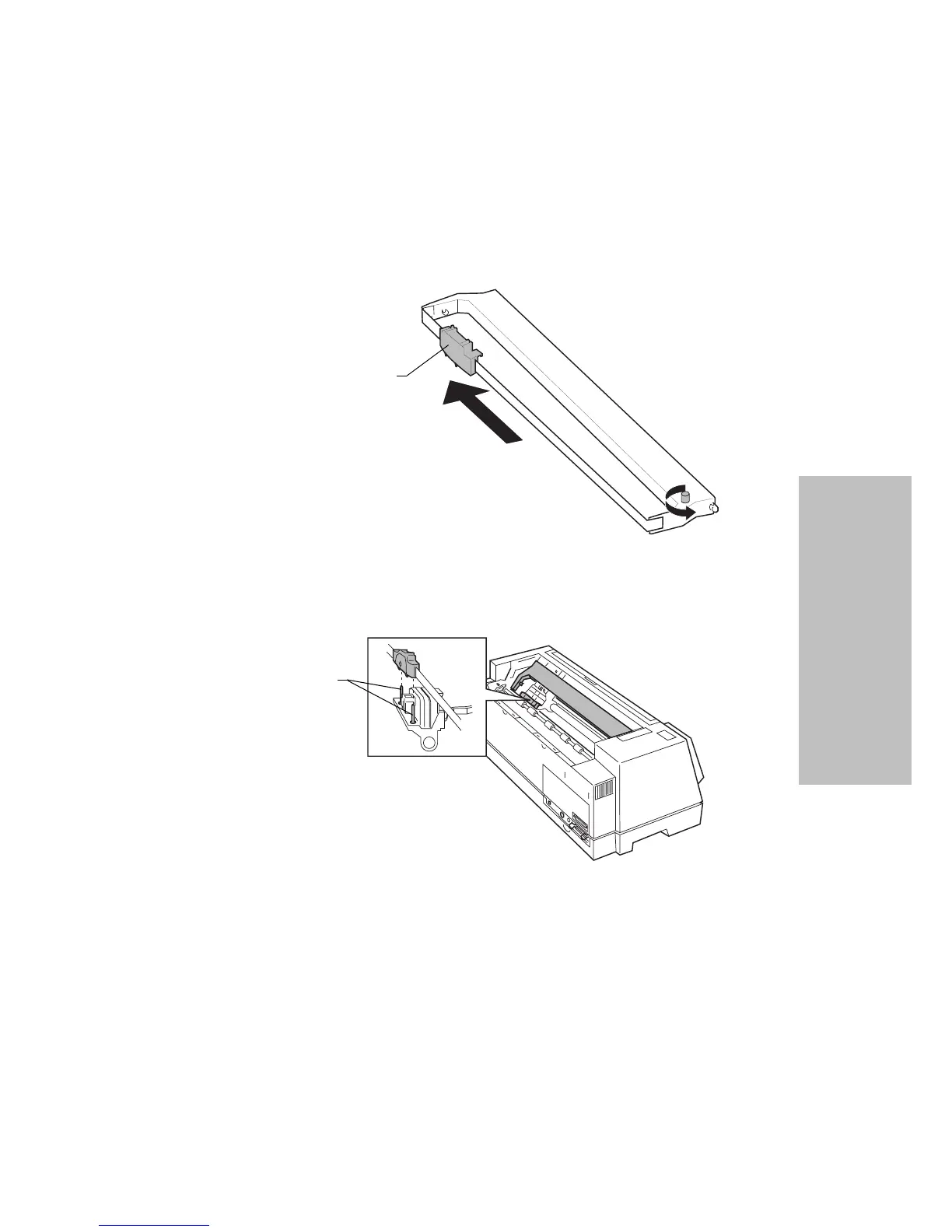

5 Manually move the ribbon guide to the side of the cartridge, as shown,
then rotate the ribbon advance knob to take up any slack in the ribbon.
6 Insert the ribbon guide over the metal pins on each side of the
printhead.
7
Manually move the printhead to the center position.
8 Align and insert the left and right side tabs of the ribbon cartridge into
the slots in the side frames.
Ribbon Guide
Pins
To Next Page
