Lexmark T65x and X65x Mono Product Study Guide Rev 1.47
For Training Purposes Only 6/3/2009
47
Understanding jam numbers and locations

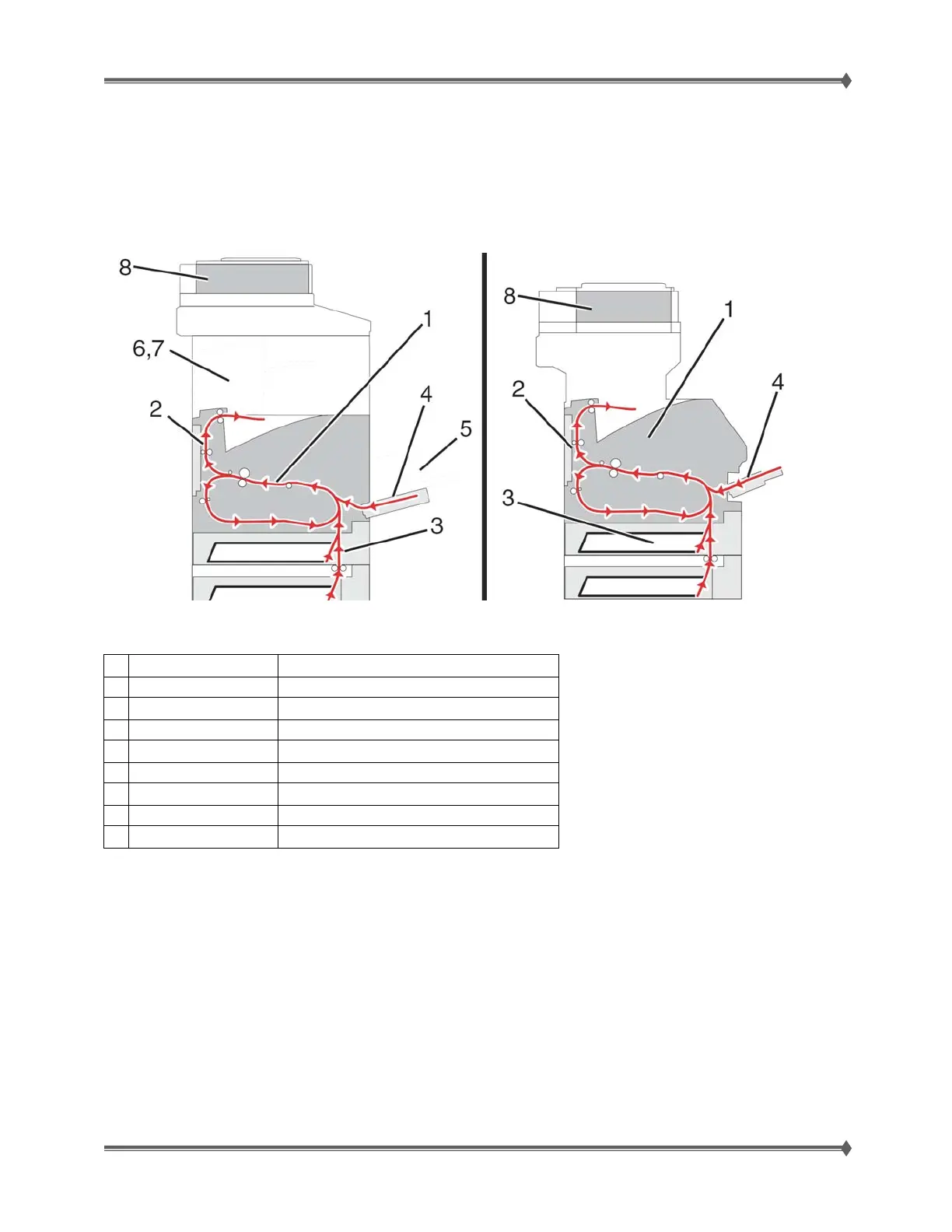

When a jam occurs, a message indicating the jam location appears. Open doors and covers and remove
trays to access jam locations. To resolve any paper jam message, you must clear all jammed paper from
the paper path. The scanner portion [8] of the diagrams below applies to the X65x units only.
The following table lists the jams that can occur and the general location of each jam:
Jam numbers Area
1 200—203 Printer
2 230—239 Duplex unit
3 241—245 Paper tray
4 250 Multipurpose feeder
5 260 Envelope feeder
6 270—279 Optional Output bin
7 280—283 Stapler
8 290—294 ADF
