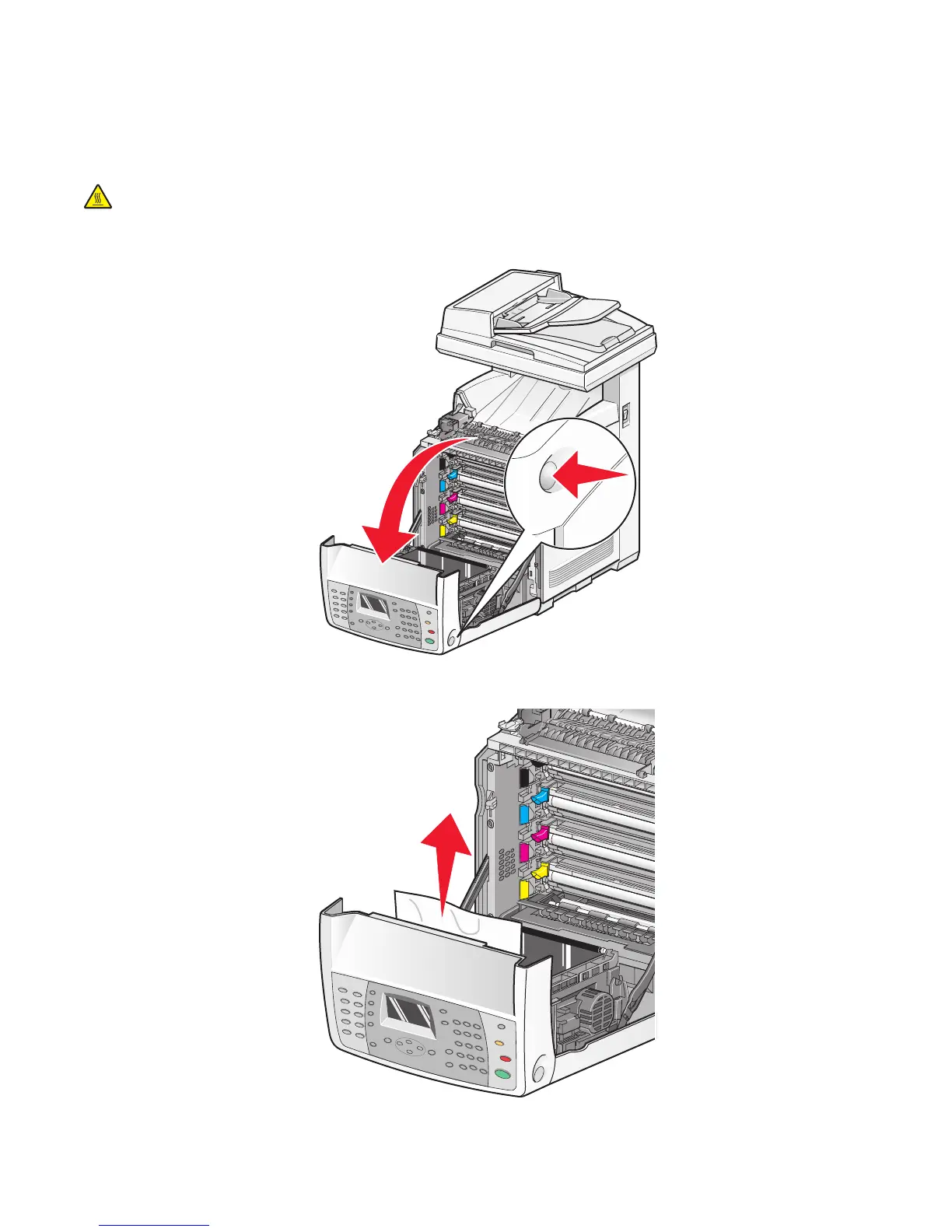

Clearing jams in the duplex unit
If the paper did not feed through the duplex unit correctly, the jam is in the duplex paper path. Jam at
Duplexer appears.
CAUTION—HOT SURFACE: To reduce the risk of injury from a hot component, allow the surface to cool before
touching it.
1 Push the release button, and gently lower the front door.
2 Pull out the jammed paper from the duplex unit. If jammed paper cannot be found, go to the next step.
Clearing jams
116
