23 300781172_002_C0 - 01/2019 - © Leybold
Installation
on the sensor unit. To assist you, a "DisplaySide" label is attached to the
flange of the analyzer tube.

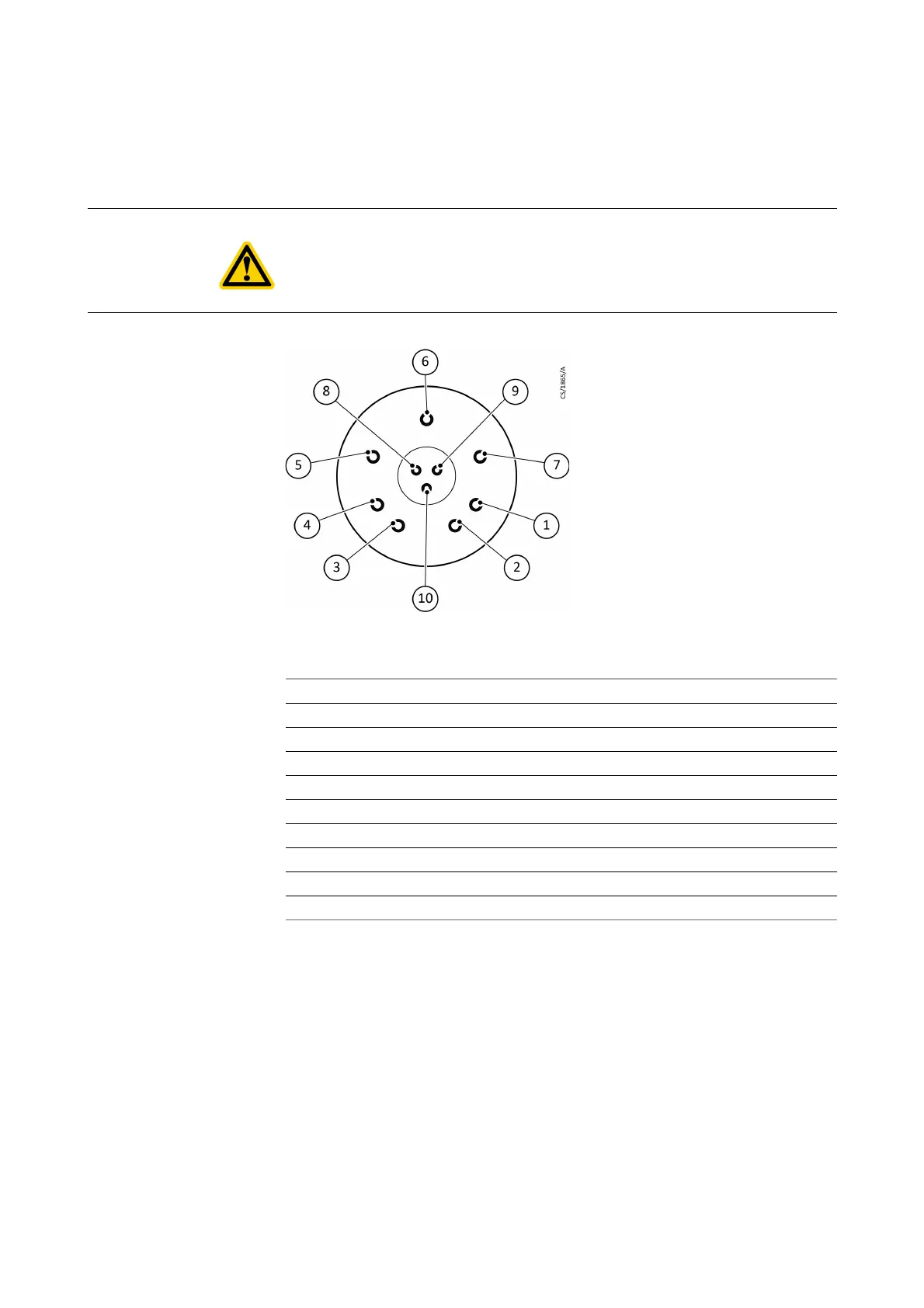

Fig. 4.1 Pin assignment as viewed from atmospheric side (LEYSPEC view)
CAUTION:
After fixing the analysis tube, do not attempt to twist it in order to change the
orientation of the sensor unit. This can cause the sensor unit to malfunction.
LEYSPEC view
1FIL1
2Grid
3FIL2
4FIL.C
5RF
6HV
7RF
8 IC (SEM/FC)
9 IC (FC) LEYSPEC view
10 TP
