Options
10.1.2 Dimensional drawings

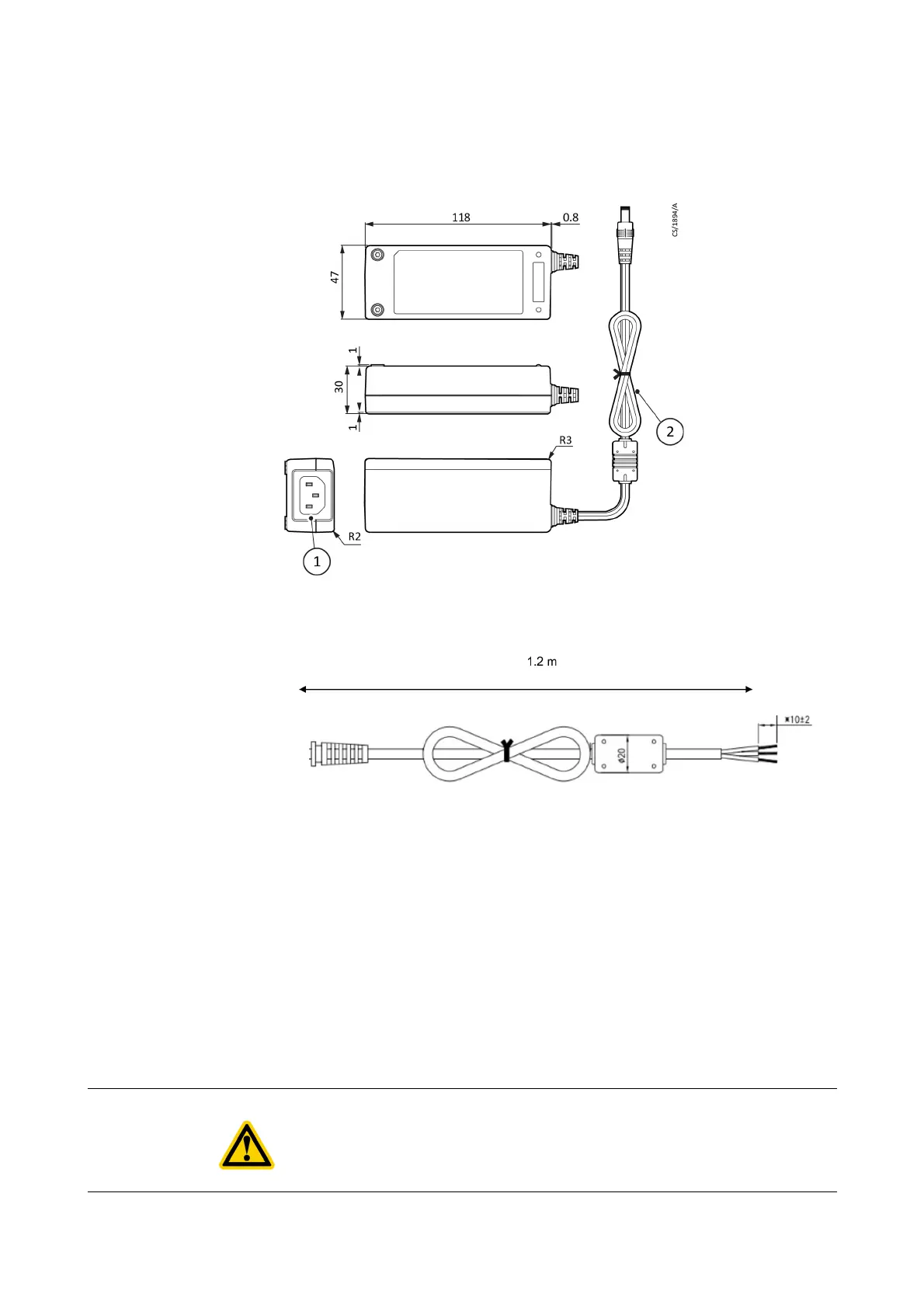

Fig. 10.1 Dimensional drawing
Fig. 10.2 DC output cable dimensions
10.1.3 Installation
1. Unpack the carton and check quantities.
2. Make sure that the AC adaptor has not been damaged in transit.
White +V
Black -V
Green F.G.
CAUTION:
Make connections to the correct pins when wiring the power connector. If you
apply power to the incorrect pins internal damage could result.
