Options


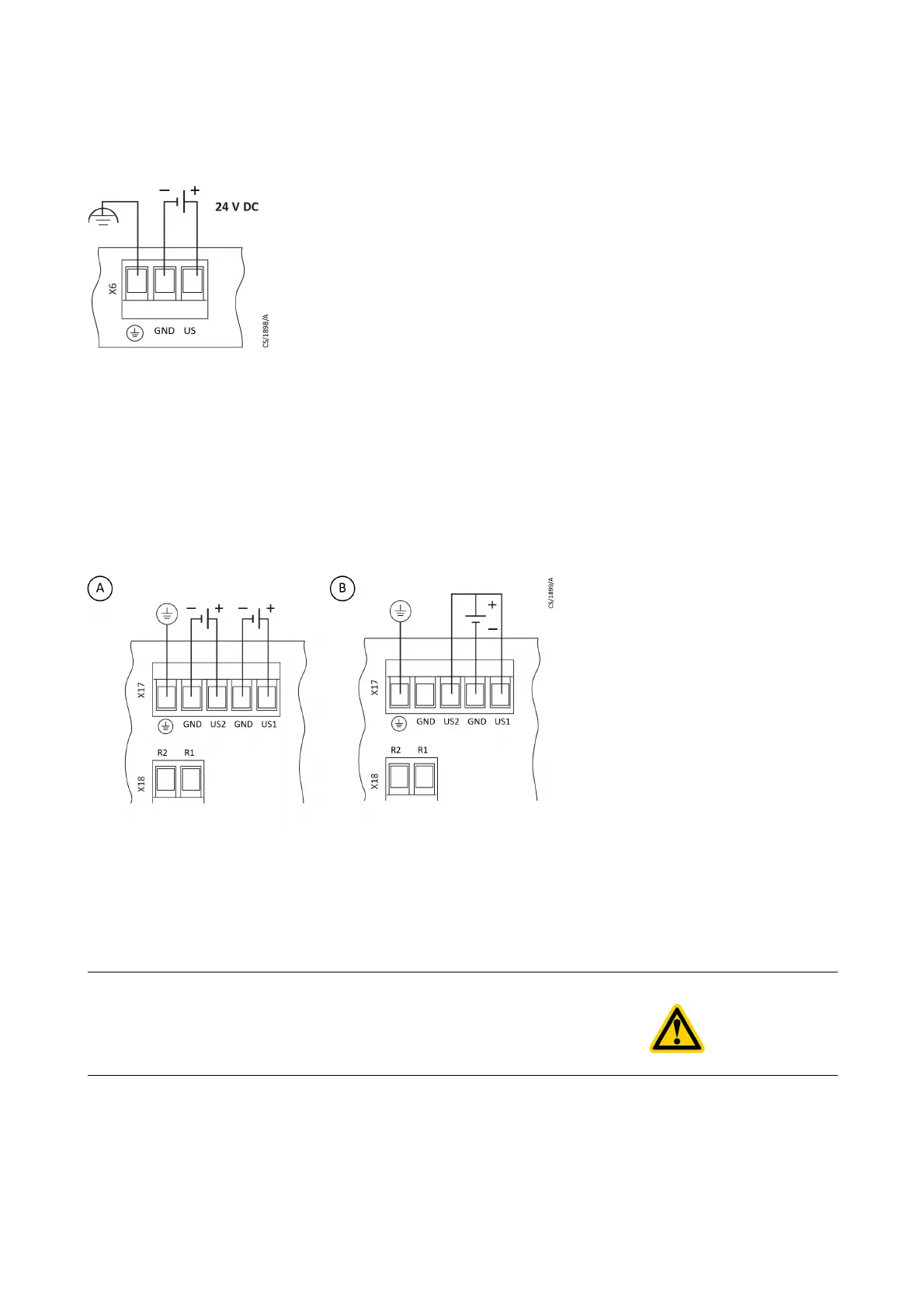

Fig. 10.4 8-Port type power connection
16-port power connector wiring
The suggested 16 port hub supports power supply redundancy.
 Connect the 24 V d.c. power supply to the power supply connector of this unit.
Be sure to turn off the main power supply when connecting the power supply.
Fig. 10.5 16-Port type power connection
A. Connection as a redundant power supply
B. Connection as single power supply
5. Connect the Ethernet cables.
6. Plug in the power connector.
7. Plug in the power supply.
CAUTION:
Make sure the power is off.
