300781172_002_C0 - 012/2019 - © Leybold 60
Maintenance
(H) Adjust high mass side
Anticlockwise:
Resolution will be better
(Peaks will be narrow)
Clockwise:
Resolution will be worse.
(Peaks will be broad)

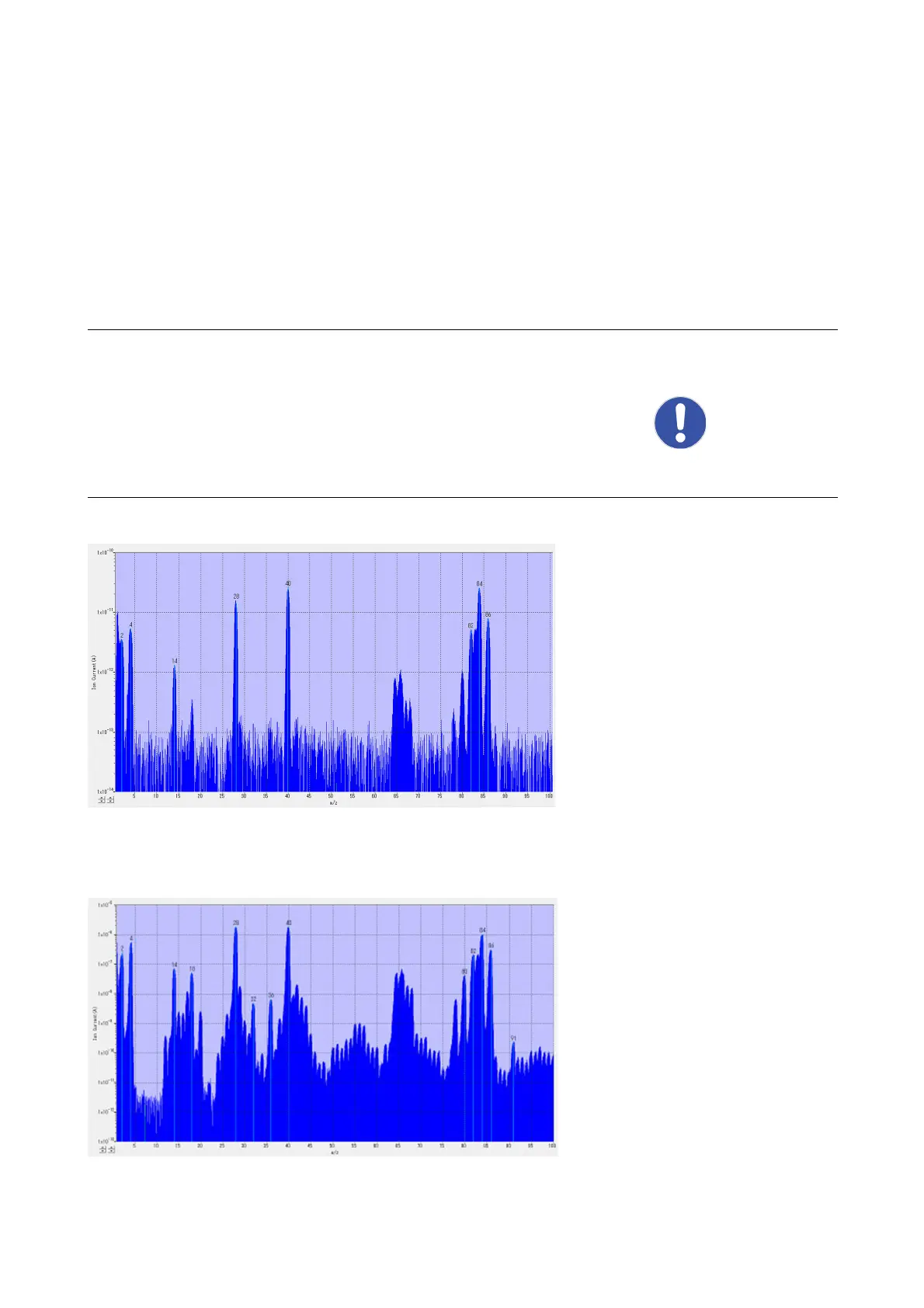

Fig. 11.3 Reference spectrum (LEYSPEC view100)
Fig. 11.4 Reference spectrum (LEYSPEC view100S)
NOTICE:
There is time lag of about 10 seconds between each adjustment and a change
to the spectrum. We recommend you rotate the about half turn each time and
wait for the spectrum to change.
Since there is no clear boundary between (L) volume and (H) volume, there are
characteristics that mutually influence both. While you adjust the
potentiometers keep track of the direction of rotation and number of rotations
at all times.
