16
300554859_002_C0 - 11/2016 - © Leybold
371
465
283
250
Ø 130
133
459
275
190
280
DN 100 ISO-K
DN 16 KF
MAINS (X20)
184

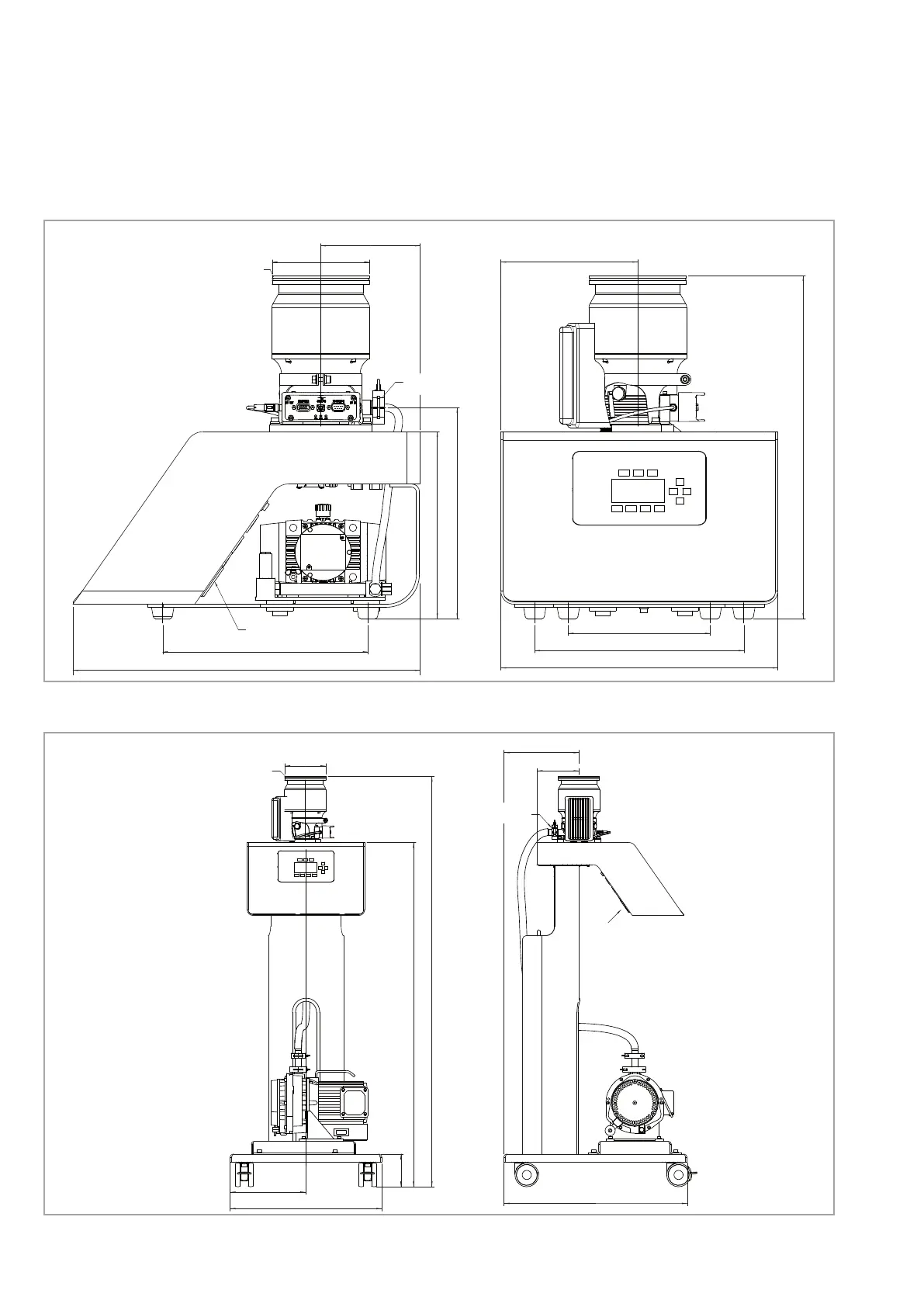

Fig. 1.9 Dimensional drawing TURBOLAB 250, dimensions in mm
480
104
1089
1297
238
Ø 130
DN 100 ISO-K
DN 16 KF
MAINS (X20)
580
238
133
Fig. 1.10 Dimensional drawing TURBOLAB 250 Cart, dimensions in mm
