BACK PANEL INFORMATION

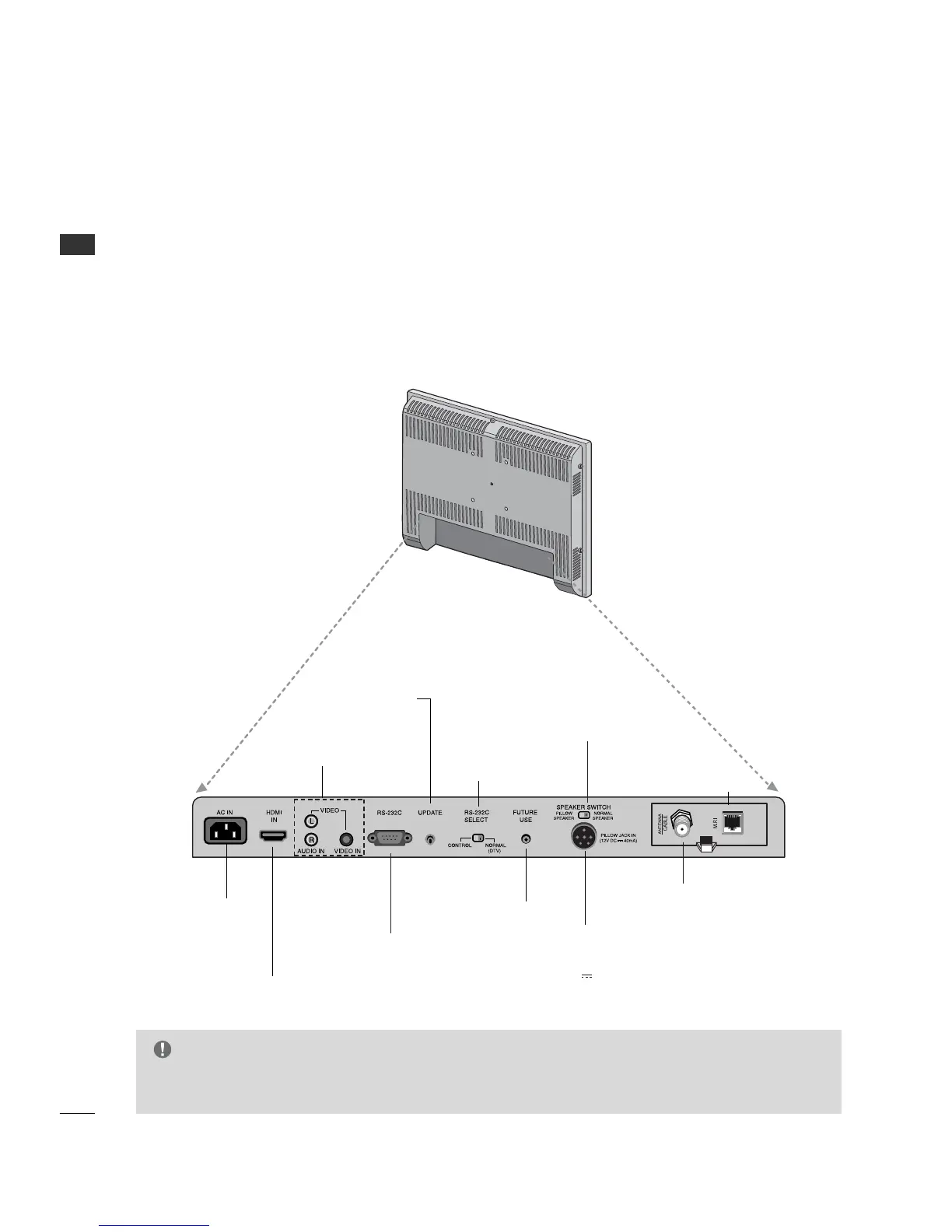

Back Connection Panel
■
Here shown may be somewhat different from your TV.
M.P.I. INTERFACE
Use with clone
programmer.
FUTURE USE
HDMI IN
RS-232C PORT
AUDIO / VIDEO IN
Connect Audio / Video
equipment to these jacks.
RS-232C
SELECT SWITCH
AC IN
UPDATE SWITCH
PILLOW JACK IN
Used to connect to
pillow speaker
(12V DC 40mA)
SPEAKER SWITCH
Used to select the speaker output switch.
*Note: If Pillow Speaker is selected, no Sound
will be heard from TV speakers.
(NORMAL SPEAKER or PILLOW SPEAKER.)
ANTENNA CABLE
Connect to an antenna or
cable system.
G
RS-232C, Update Switch and RS-232C Select Switch are reserved for qualified and authorized service and
technical support personal only.
