Lighting Controls Blue Box LT Series - Gr1404 Lt; Gr1408 Lt Drawings & Details

THE BLUE BOX LT OVERVIEW 7
LCDBBO03Sept08
GR1404LT / GR1408LT DRAWINGS & DETAILS
Screw fastener secures white door (Master only).1.
White door provides a barrier between Control 2.
Interface and High Voltage connections beneath
(Master only).
Hinged locking blue door.3.
DTC Clock / Display & Programming Interface: 4.
32-channel, 365-day astronomical clock with
Scroll and Tab to access control features for en-
tire system (Master only).
Door pocket contains the following documenta-5.
tion: Refer to the Blue Box LT Installation Guide
for more information on these documents.
Panel Schedulea)
(optional) DI Card schedule.b)
If this is a Master panel, the System Device c)
Schedule on the back of the Panel Schedule
should also be filled-out.. It lists out all of the
digital lighting controls devices, where they are
and what they do. (see System Start-Up Guide
for more information.

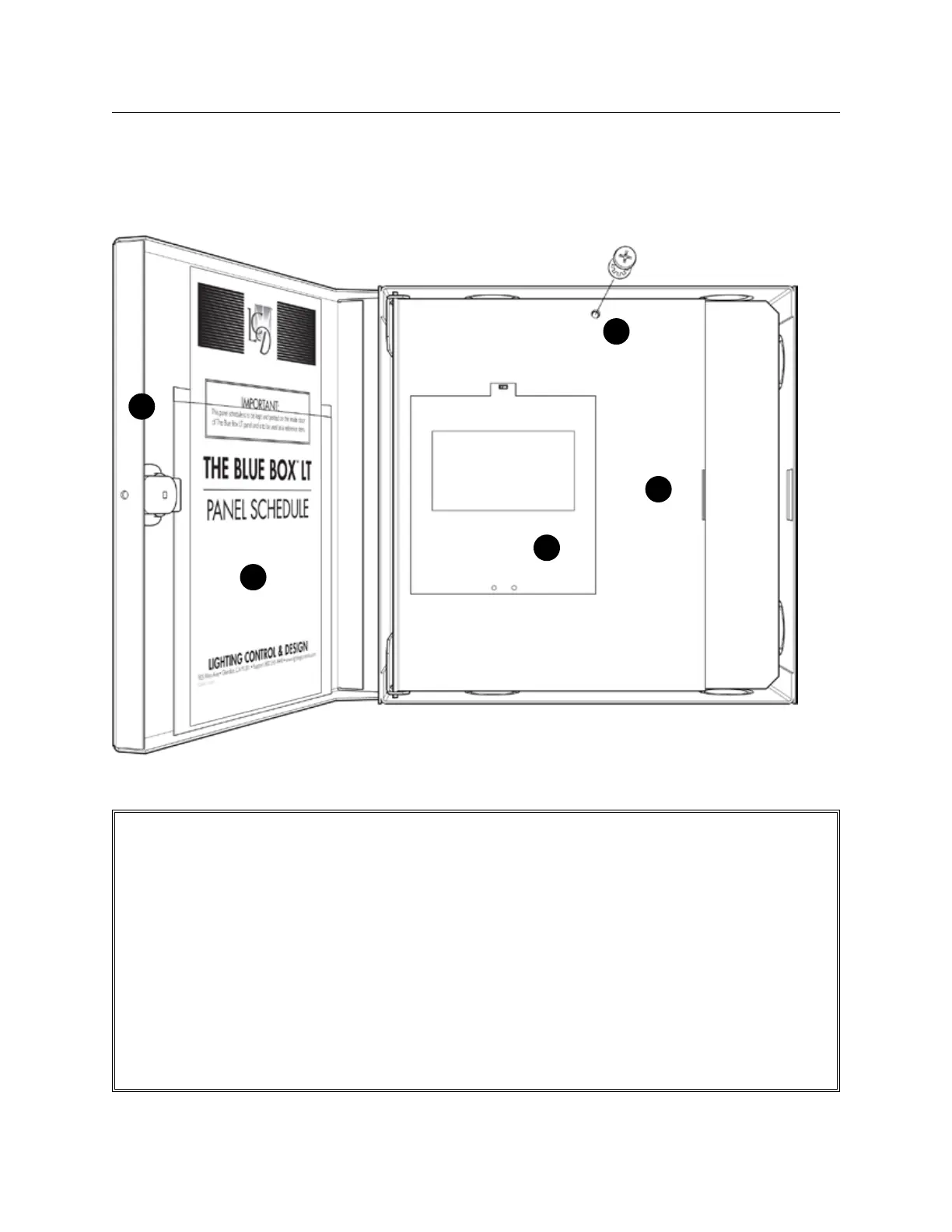

GR1404/08 LT (FRONT DOOR OPEN)
1
3
2
4
5
NEMA 1 surface mount enclosure with hinged door and key lock;
8.375” h x 8.375” w x 3.125” d (GR1404 LT)•
13.5” h x 8.5” w x 3.125” d (GR1408 LT)•
