CONNECTED TO THE MASTER BLUE BOX LT
If connected to the photocell inputs of a master Blue
Box, the PCO must control relays via one or more of
the first 8 clock schedules (photocell on, time clock
off, etc.); each with a unique “on” or “off ” trigger –
programmable at any analog value (1 – 1020).
CONNECTED TO PHOTOCELL (PCC- CARD)
If the PCO is connected to a photocell card (PCC1
or PCC3), it can be programmed to directly switch
relays on and off at any analog value (1 – 1020) with
a programmable time delay, but can not be included
in a time schedule.
OUTDOOR

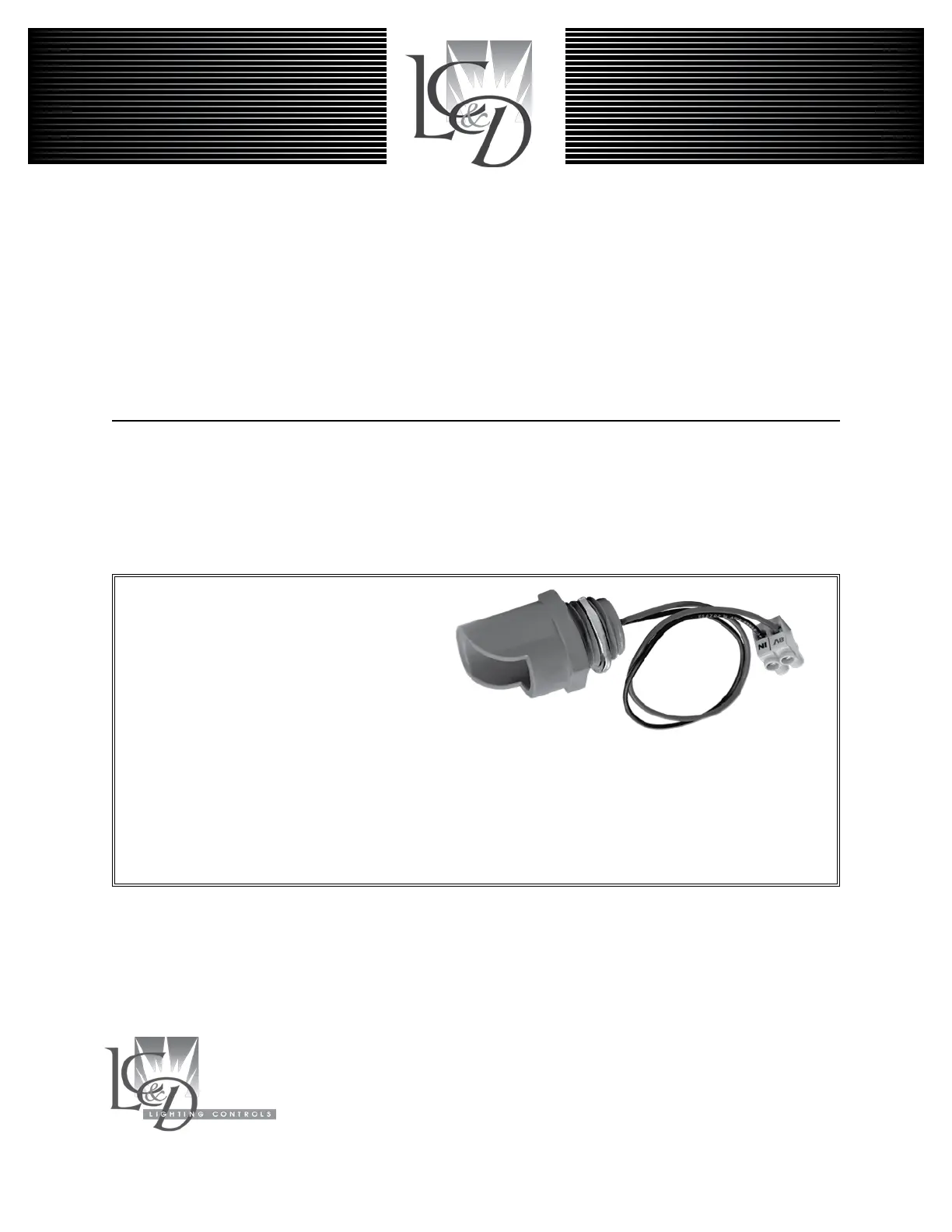

PHOTOCELL (PCO)
OvERvIEW
Lighting Control & Design
905 Allen Ave, Glendale CA 91201
Tel: 800-345-4448
•
www.lightingcontrols.com
®
PCO
(OUTDOOR PHOTOCELL)
INSTALLATION GUIdE
®
