7.2 Installation of SCU (System Control Unit)
Before installing the SCU:
Fit the mains cable to the SCU as follows:
Remove the connector cover on the rear of the SCU by unscre-
wing the small black wheel.
Fit the mains connector onto the SCU.
Replace the connector cover while ensuring that the mains cable
is fed through the slots provided in the cover and the back of the
SCU.
Tighten the black wheel.
If foot end of bed frame is suitable for hanging SCU:
Hold SCU in one hand and unfold hook on back with the other.
Hang SCU on foot end of bed frame.
If foot end of bed frame is not suitable for hanging SCU:
Put SCU on oor with integrated mounting feet.
7.3 Connecting Mattress and SCU
Ensure that air connector is in open mode (see Fig. 5).
Insert air connector 1 in the socket 2 at an angle of approximately 45°.
Push air connector 1 down until it clicks into place.
1. Air connector plug
2. Air connector
CAUTION!
Risk of injury when installing SCU!
Ü
Ensure that no body parts are trapped between hook and foot board when using spring-loaded SCU hanging
hooks.
Ü
Fix SCU securely SCU to prevent it from sliding or accidentally being knocked off.
CAUTION!
Material damage due to incorrect installation of SCU!
Ü
Do not install SCU in linen shelf on bed frame.

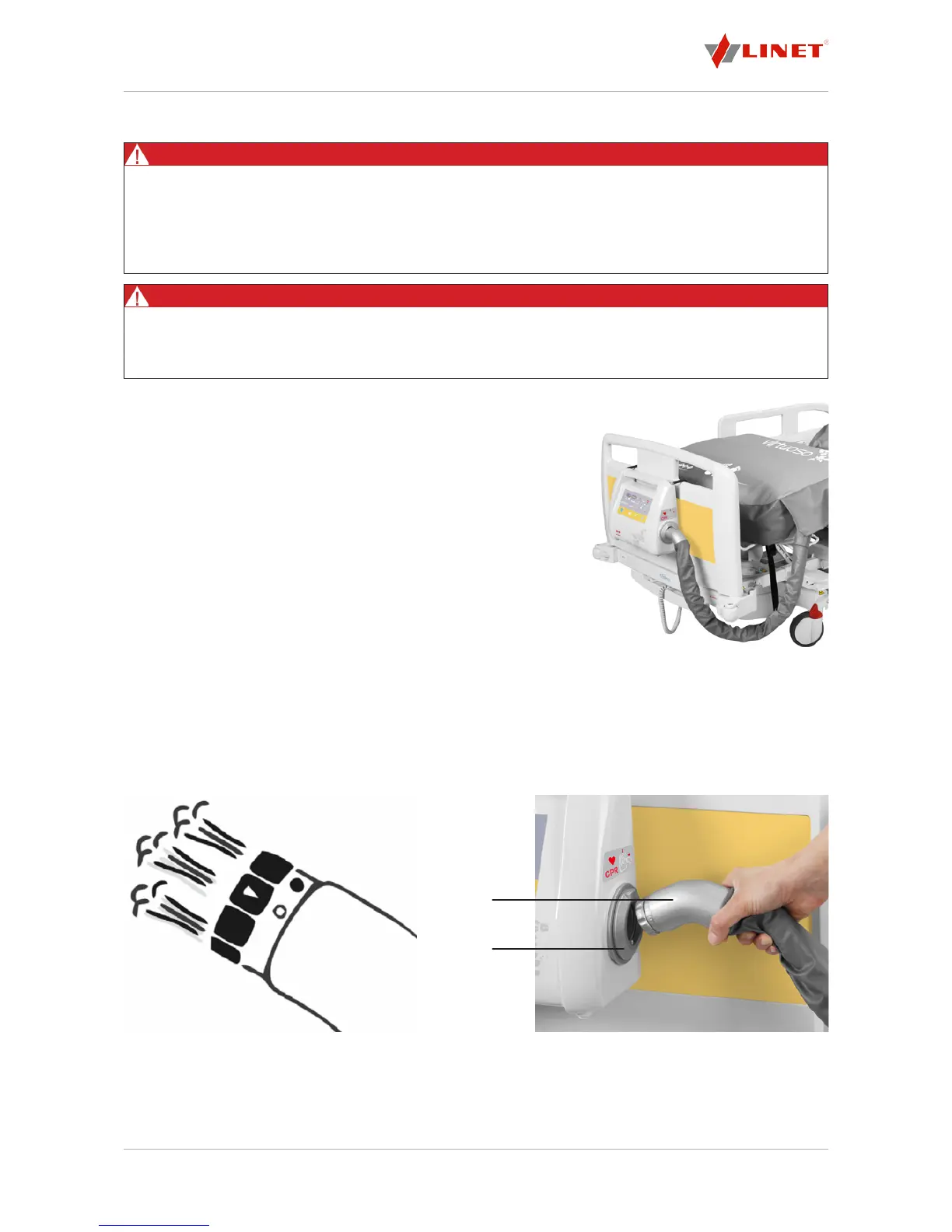

Fig. 4 Installation of SCU
Fig. 5 Open Mode Fig. 6 Air Connector
1
2
