11 Additional Functions:
11.1 CPR (umbilical connected)
To allow resuscitation with SCU connected:
 Press red CPR button.
 Remove air connector plug from air connector.
Mattress deates.
NOTE During this process, it is possible that the backrest detector plug is pulled out. This does not affect the CPR
function.
11.2 CPR (umbilical disconnected)
To allow resuscitation in Transport mode:
 Rotate end of air connector and main body in opposite directions until the
red symbols ▲ and o are aligned and air starts to escape.
Mattress deates.

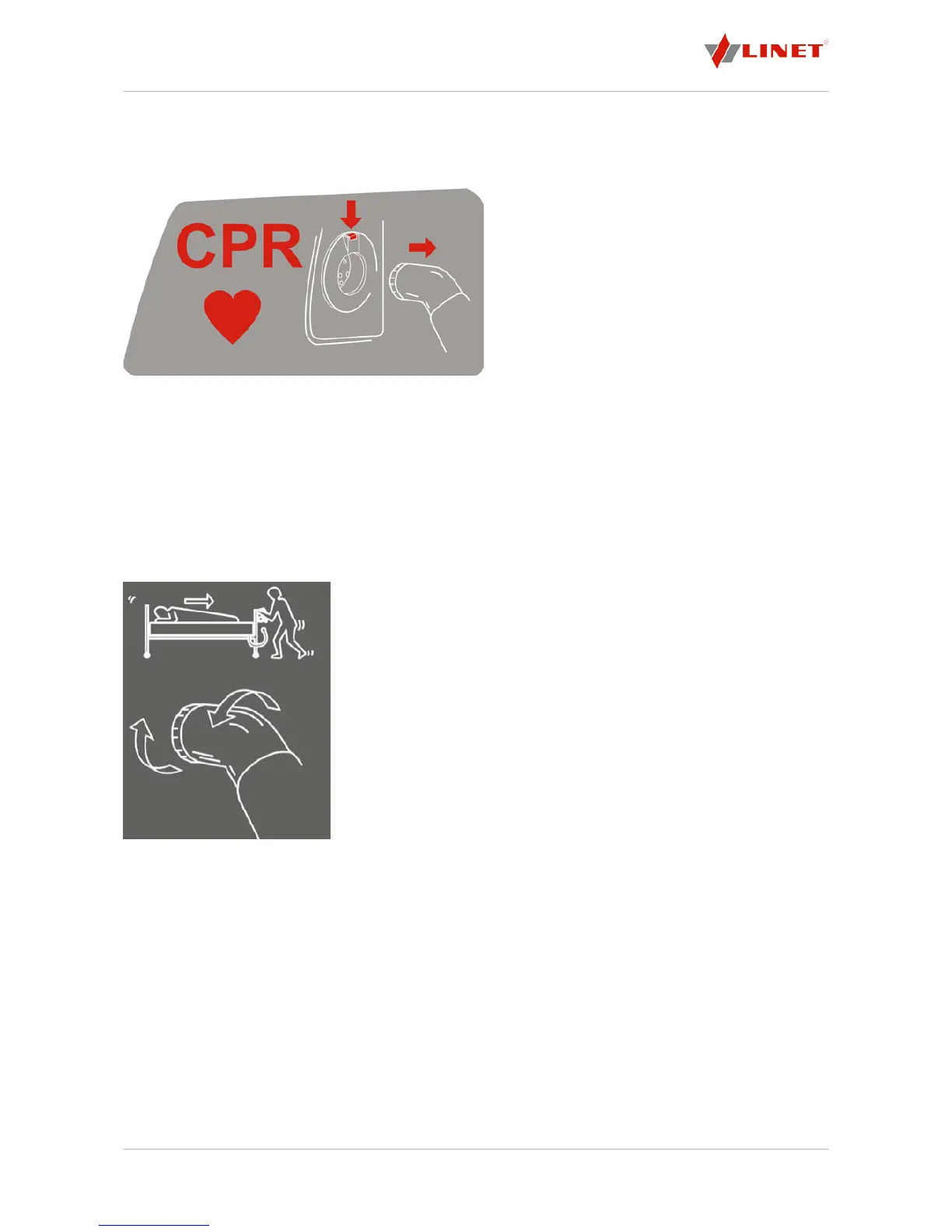

Fig. 13 CPR (SCU connected)
Fig. 14 CPR (SCU connected)
