Chapter 2: Getting to Know the Switch
Front Panel
24-Port 10/100/1000 Gigabit Switch with Webview and PoE
Chapter 2: Getting to Know the Switch
Front Panel
The Switch's LEDs and ports are located on the front panel.
LEDs
System Green. The System LED lights green to indicate the power is being supplied to the Switch.
Lights orange to indicate that the Switch’s power-on-self-test (POST) is in progress.
Flashes orange to indicate that the POST has failed.
Link/Act (1-24) Orange. The Link/Act LED lights orange to indicate a functional 1000Mbps network link
through the corresponding port (1 through 24) with an attached device.
Green. The Link/Act LED lights green to indicate a functional 10/100Mbps network link.
Flashes to indicate that the Switch is actively sending or receiving data over that port.
PoE Orange. The PoE LED lights orange to indicate a powered device is connected to the
corresponding port (1 through 24). Flashes to indicate that the Switch is actively sending
power over that port.

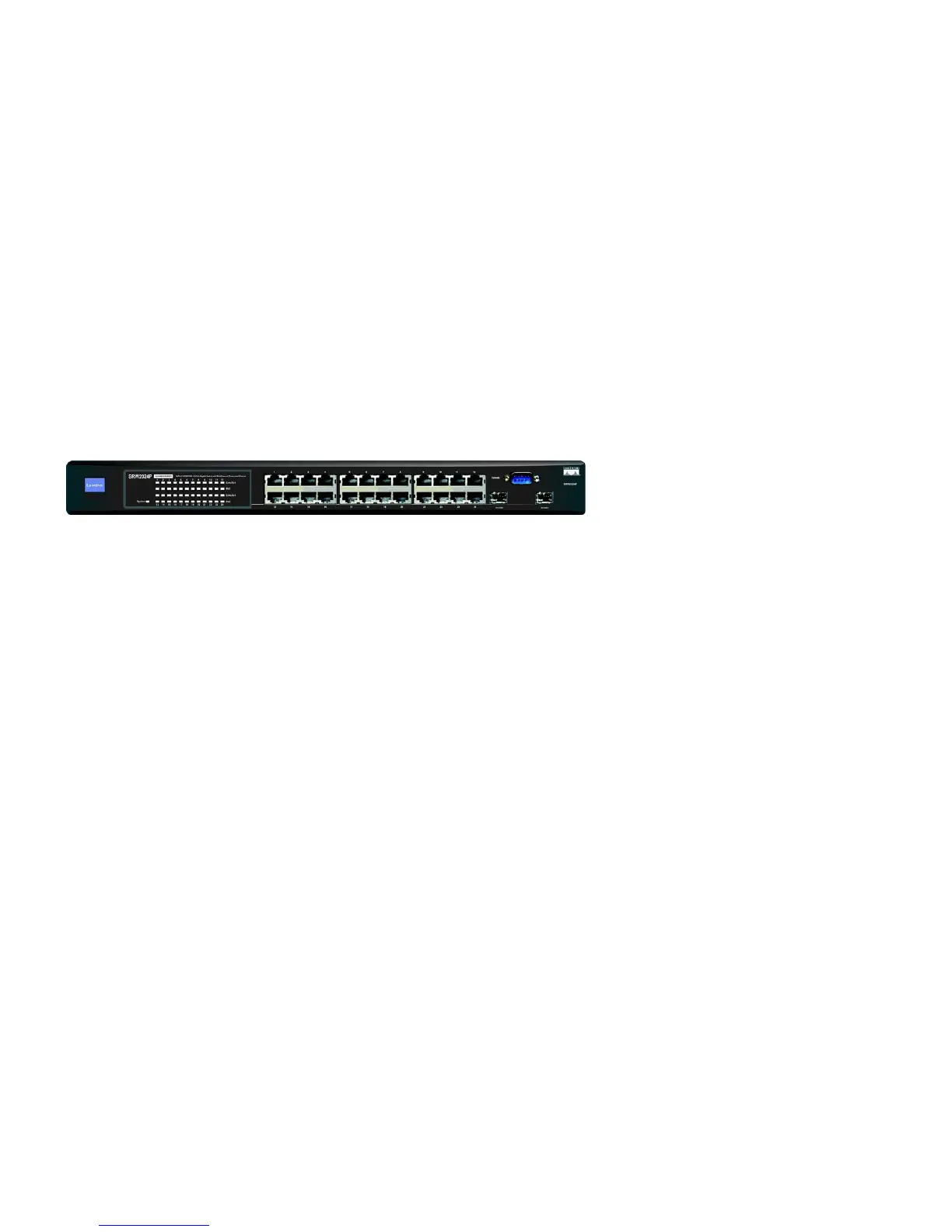

Figure 2-1: Front Panel
