Chapter 5: Using the Web-based Utility for Configuration
Port Management Tab - Link Aggregation
24-Port 10/100/1000 Gigabit Switch with Webview and PoE
Type. The type of LAG is displayed here.
Link Status. The link status is displayed here.
Speed. The connection speed is displayed here.
Duplex. The connection duplex is displayed here.
Flow Control. This is the flow control status of the LAG. It is active when the port uses Full Duplex Mode.
Create. To create a new LAG, click the Create button in the Create column, then add members to the LAG by
clicking on the Select Member button. The select member screen for the Link Aggregation opens.
Detail button. To configure the LAG and the LAG broadcast control, click the Detail button. The detail screen for
the LAG opens. Assign up to 8 ports to the LAG by selecting the ports, then click Apply.

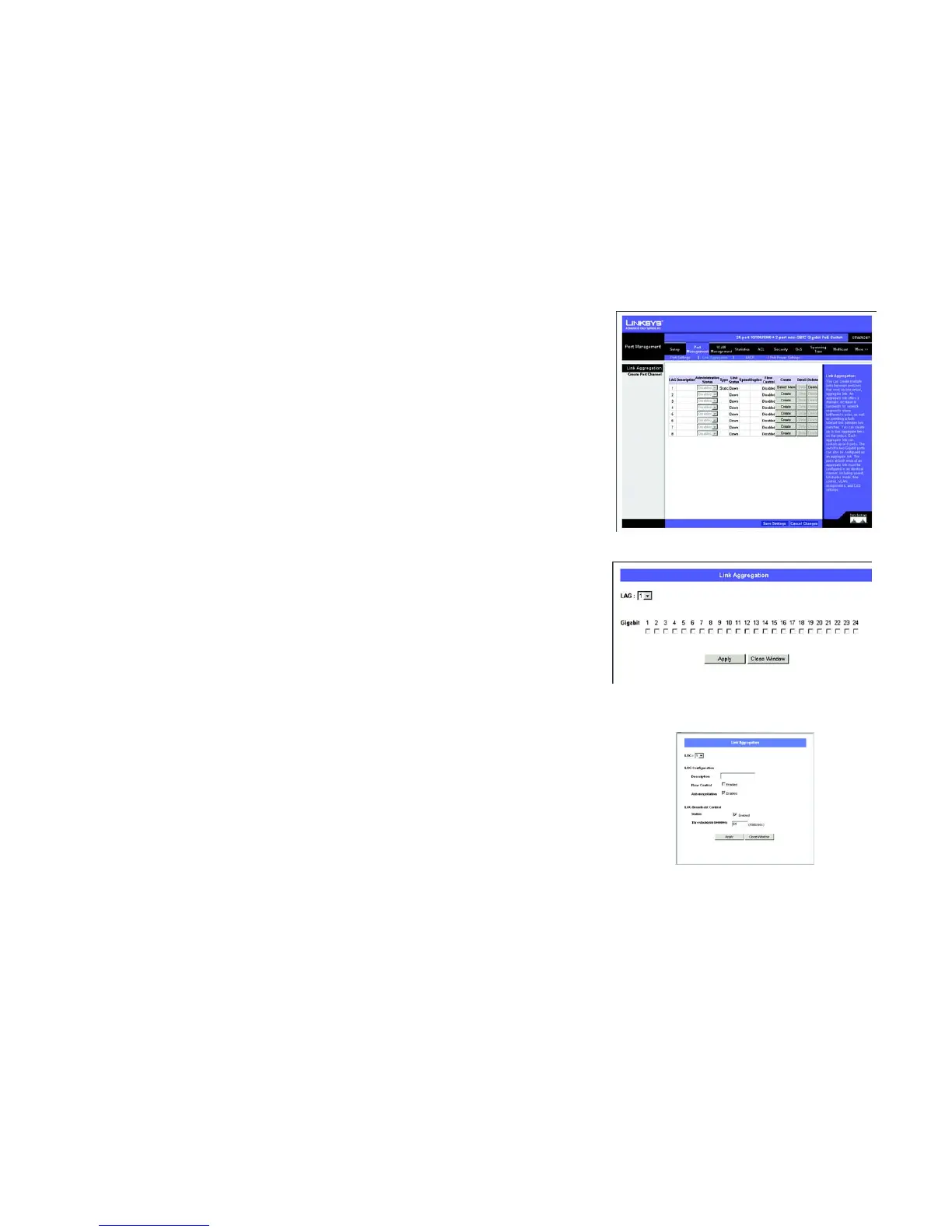

Figure 5-8: Link Aggregation - Link Aggregation Select
Member
Figure 5-7: Port Management - Link Aggregration
Figure 5-9: Link Aggregation - Link Aggregation Detail
