Linksys SRW2024P User Manual

68
Chapter 5: Using the Web-based Utility for Configuration
Multicast Tab - Member Ports Query
24-Port 10/100/1000 Gigabit Switch with Webview and PoE
Multicast Tab - Member Ports Query
You can use the Member Port Query screen to display the ports on the Switch attached to a neighboring multicast
router/switch for each VLAN and multicast IP address.
Select a VLAN ID and the IP address for a multicast service from the drop-down menus. The Switch will display all
the interfaces that are propagating this multicast service
Multicast Tab - Router Member Ports Query
Multicast routers that are attached to ports on the Switch use information obtained from IGMP to support IP
multicasting across the Internet. These routers may be dynamically discovered by the Switch or statically
assigned to an interface on the Switch.
You can use the Router Port Query screen to display the ports on the Switch attached to a neighboring multicast
router/switch for each VLAN ID.
Select a VLAN ID from the drop-down menus. The Switch will display all the interfaces that have attached
multicast routers dynamically discovered by the Switch, or those that have been statically assigned to an
interface on the Switch.

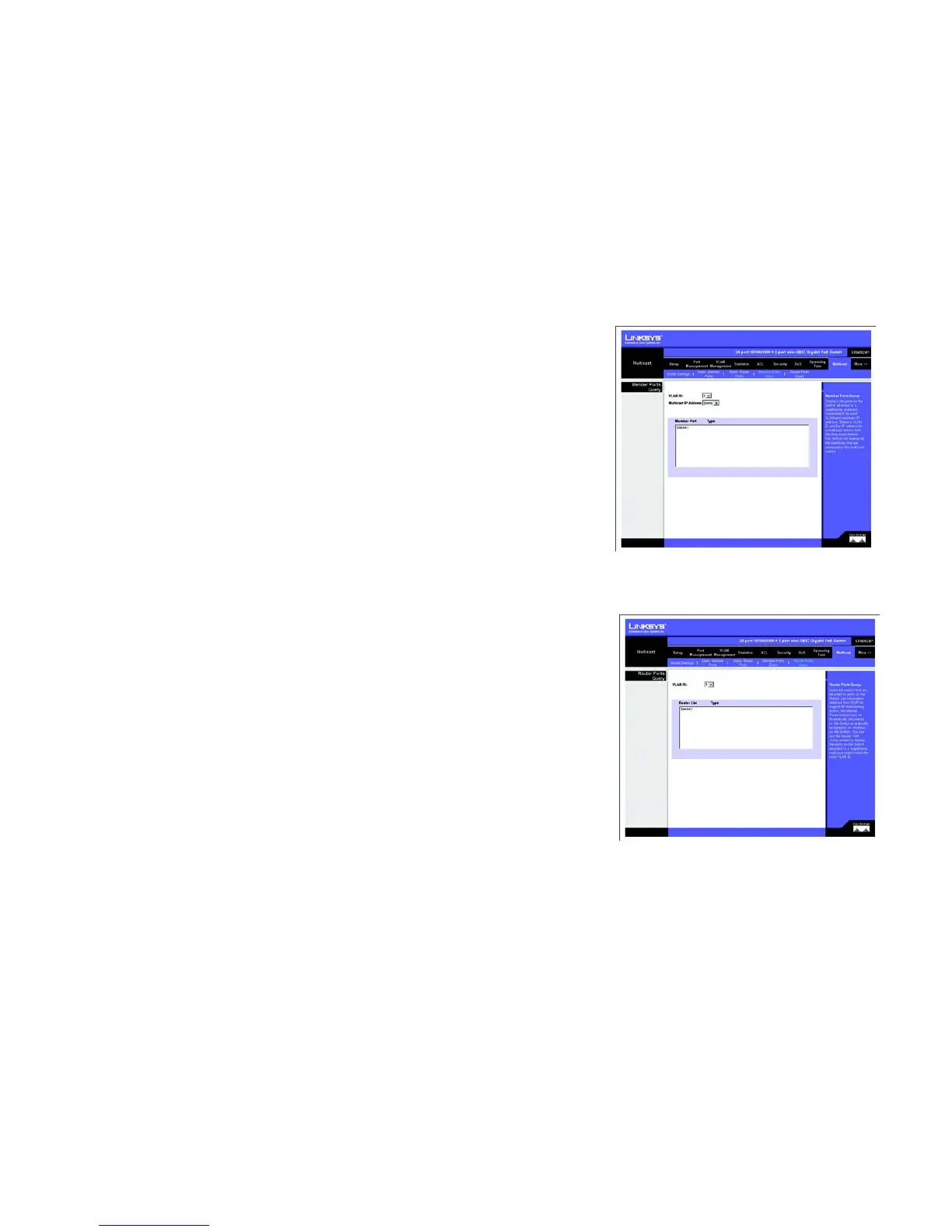

Figure 5-49: SNMP - Member Ports Query
Figure 5-50: Router Ports Query
