75
Chapter 5: Using the Web-based Utility for Configuration
Admin Tab - Cable Test
24-Port 10/100/1000 Gigabit Switch with Webview and PoE
• Both. Defines the port mirroring on both receiving and transmitting ports.
Target Port. Defines the port from which traffic is mirrored.
Specify the source port, the traffic type to be mirrored, and the target port, then click Add. The mirror session is
displayed in the text box.
Admin Tab - Cable Test
To test the connection quality of an attached cable, click on the Test button for the port. Note that the cable needs
to be connected at both ends, otherwise the test will fail.
Port. This is the port to which the cable is connected.
Test Result. This is the test result. OK indicates that the cable passed the test. No Cable means there is no cable
connected to the port. Open Cable means the cable is connected on only one side. Short Cable indicates that a
short has occurred in the cable. Undefined indicates that the test could not be properly performed.
Cable Fault Distance. This is the distance from the port at which the cable error occurred.
Last Update. This is the last time the port was tested.
Test. Click the Test button to perform the test.
Admin Tab - Ping
You can use a ping to see if another site on the network can be reached. Ping sends ICMP echo request packets
to another node on the network. Enter the IP address or host name of the device you want to ping, then click Go.
The ping results are displayed in the Ping Status text box.
The following are some common displayed results of a ping:
• Normal response - The normal response occurs in one to ten seconds, depending on network traffic.
• Destination does not respond - If the host does not respond, a “timeout” appears in ten seconds.
• Destination unreachable - The gateway for this destination indicates that the destination is unreachable.
• Network or host unreachable - The gateway found no corresponding entry in the route table

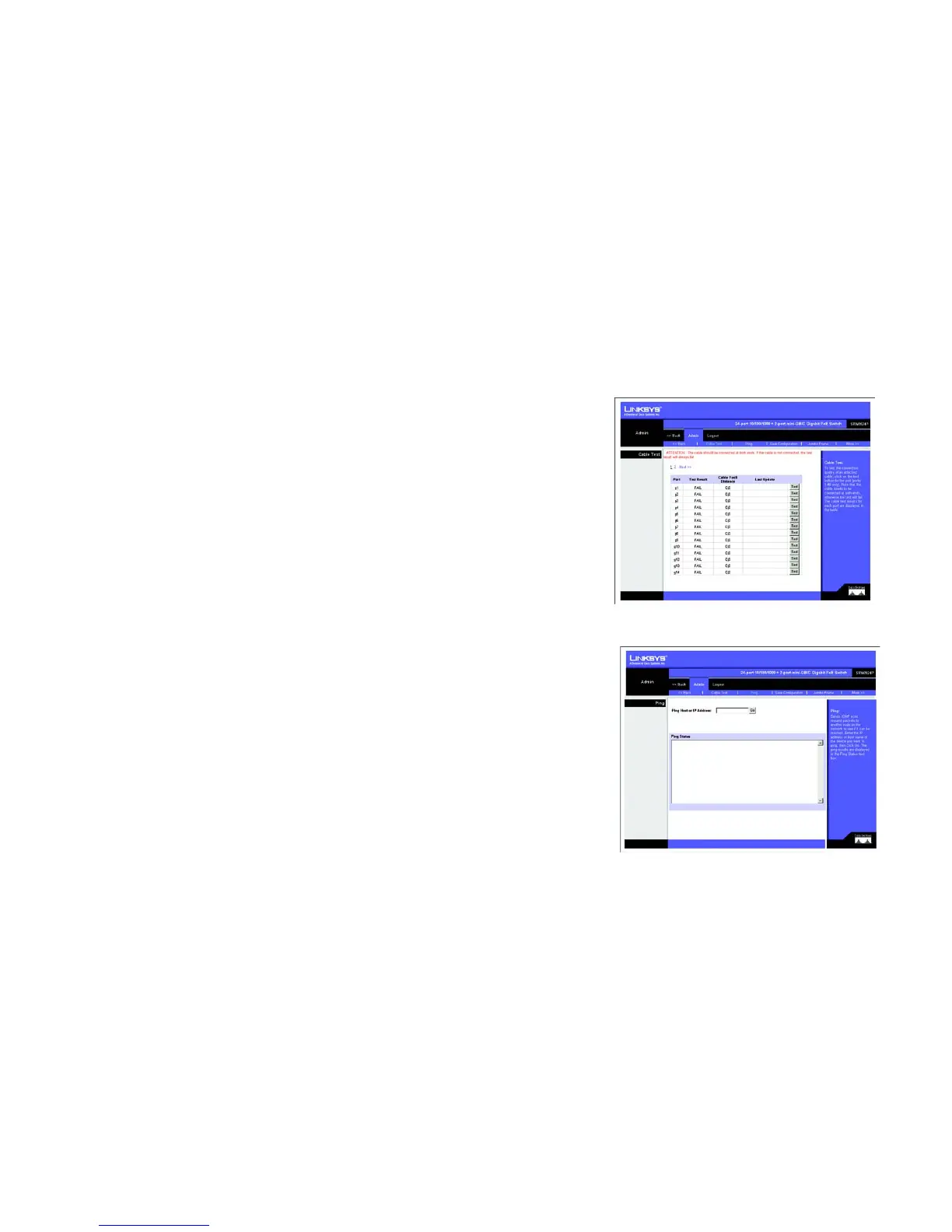

Figure 5-59: Admin - Ping
Figure 5-58: Admin - Cable Test
