34
Chapter 5: Using the Web-based Utility for Configuration
Port Management Tab - PoE Power Settings
24-Port 10/100/1000 Gigabit Switch with Webview and PoE
Port Management Tab - PoE Power Settings
If a device is connected to a Switch port and the Switch detects that it requires more than the power budget of
the port, no power is supplied to the device (that is, port power remains off).
If the power demand from devices connected to Switch ports exceeds the power budget set for the Switch, the
port power priority settings are used to control the supplied power.
Select Enabled to enable PoE power on selected ports, set the priority using the drop-down menu provided, and
set the power allocation for each port.
Port. Displays the port number.
Admin Status. Select Enabled to enable PoE power to be supplied to the connected device.
Priority. Set the priority of the supply using the drop-down menu.
Power Allocation (3000-15400 milliwatts). Set the maximum power that can be supplied to the port.
Mode. Displays whether the connected PoE device is on or off.
Power Consumption (milliwatts). Displays the power currently being used by the connected PoE device.

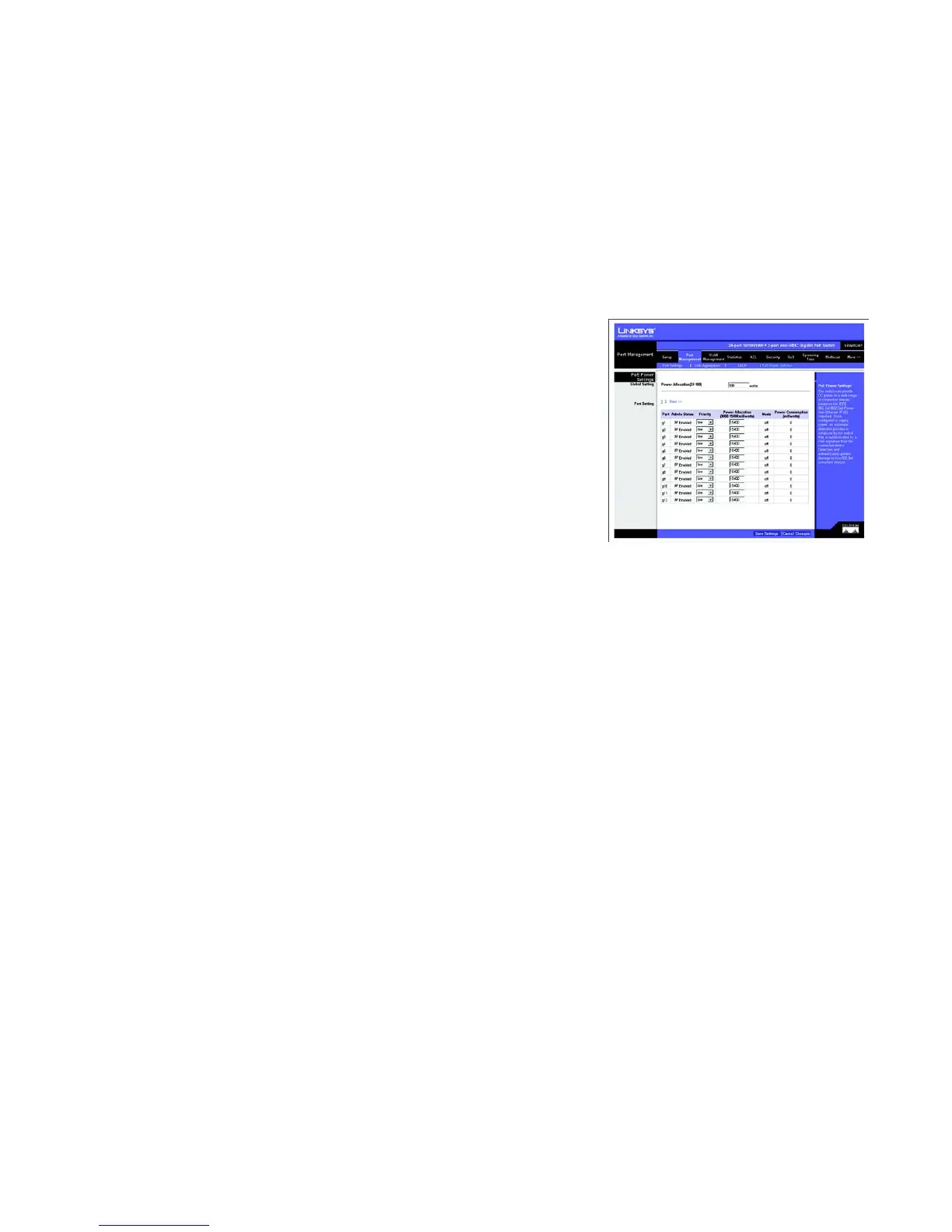

Figure 5-11: Port Management - PoE Power Settings
