Chapter 3: Connecting the Switch
Overview
24-Port 10/100/1000 Gigabit Switch with Webview and PoE
Chapter 3: Connecting the Switch
Overview
This chapter will explain how to connect network devices to the Switch. For an example of a typical network
configuration, see the application diagram shown below.
When you connect your network devices, make sure you don’t exceed the maximum cabling distances, which are
listed in the following table:
Table 1: Maximum Cabling Distances
From To Maximum Distance
Switch Switch or Hub* 100 meters (328 feet)
Hub Hub 5 meters (16.4 feet)
Switch or Hub Computer 100 meters (328 feet)

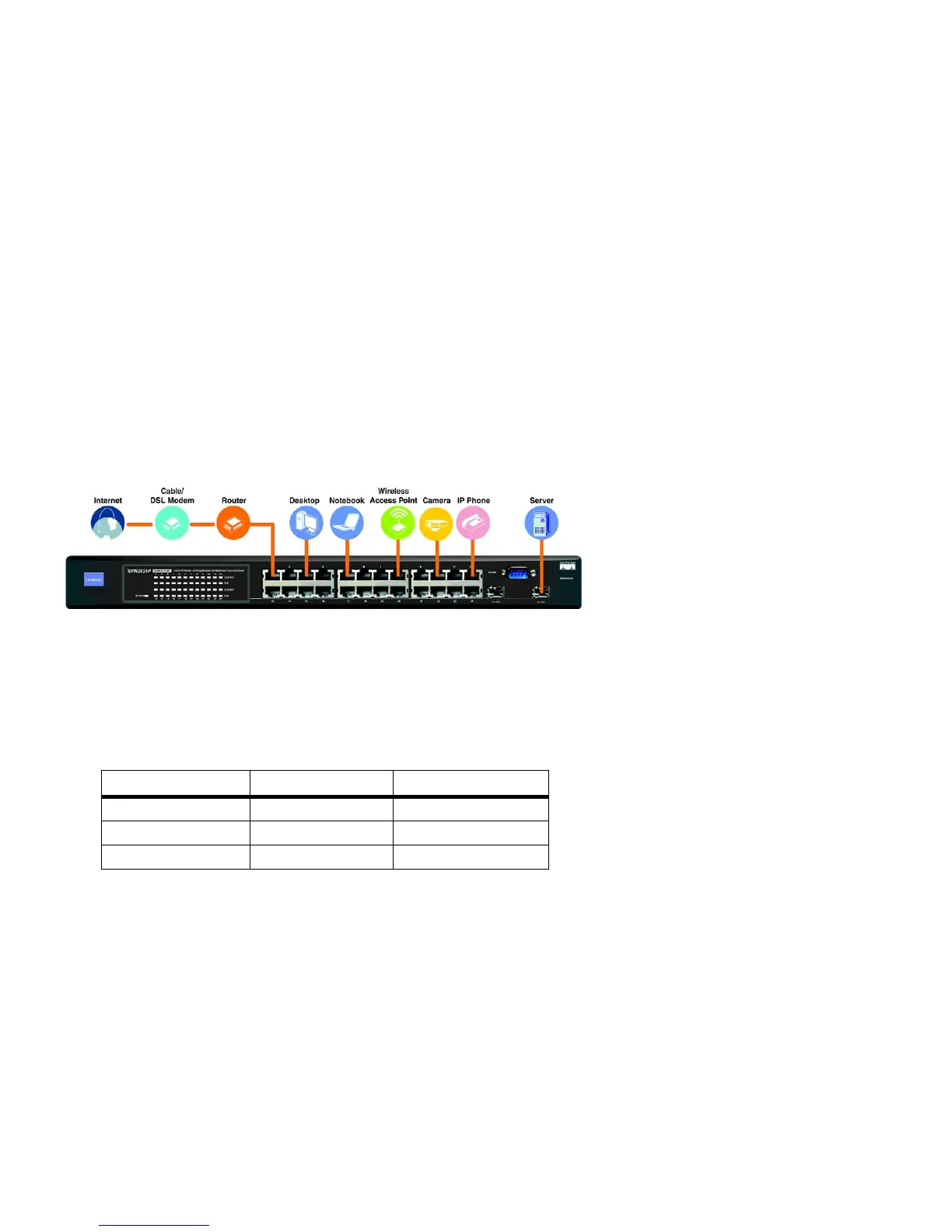

Figure 3-1: Typical Network Configuration for the SRW2024P
