Chapter 5: Using the Web-based Utility for Configuration
Setup Tab - Network Settings
24-Port 10/100/1000 Gigabit Switch with Webview and PoE
PoE Information
Maximum Available Power. Displays the maximum power that can be supplied to a connected PoE device.
System Operation Status. Displays whether the Switch can provide PoE power or not.
Mainpower Consumption. Displays the current number of watts that the Switch is providing to PoE devices.
Setup Tab - Network Settings
The Network Settings screen allows you to assign DHCP or static IP settings to interfaces and assign default
gateways.
Identification
System Name. This field allows you to assign a system name.
System Location. This field is used for entering a description of where the Switch is located, such as 3rd floor.
System Contact. Enter the administrative contact person in this field.
System Object ID. The system object identifier is displayed here.
Base MAC Address. This is the MAC address of the Switch.
IP Configuration
Management VLAN. This drop-down allows you to select the Management VLAN.
IP Address Mode. This drop-down allows you to select Static or Dynamic IP address configuration.
Host Name. Enter the DHCP Host Name here.
IP Address. If using a static IP address, enter the IP address here.
Subnet Mask. Enter the subnet mask of the currently configured IP address.
Default Gateway. Enter the IP address of the Default Gateway.
DNS Server. Enter the primary DNS Server information.

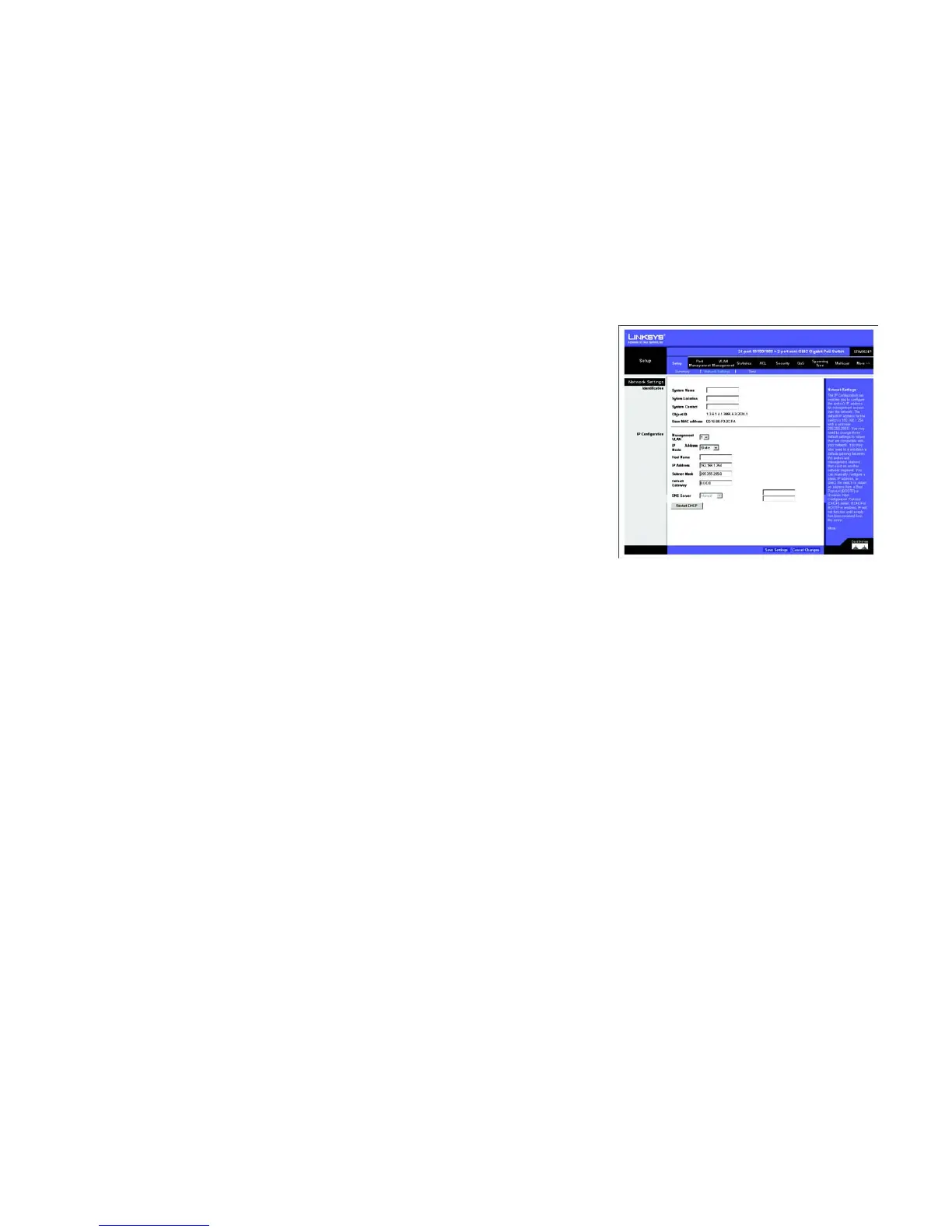

Figure 5-3: Setup - Network Settings
