52
Chapter 5: Using the Web-based Utility for Configuration
Security Tab - HTTPS Settings
24-Port 10/100/1000 Gigabit Switch with Webview and PoE
Security Tab - HTTPS Settings
You can configure the Switch to enable the Secure Hypertext Transfer Protocol (HTTPS) over the Secure Socket
Layer (SSL), providing secure access (that is, an encrypted connection) to the Switch’s web interface.
To enable HTTPS, select HTTPS Status and specify the port number.
Click Save Settings to save the changes.
Security Tab - Management ACL
Management ACL You can create a list of up to 16 IP addresses or IP address groups that are allowed access to
the Switch through the web interface, SNMP, or Telnet.
The management interfaces are open to all IP addresses by default. Once you add an entry to a filter list, access
to that interface is restricted to the specified addresses. If anyone tries to access a management interface on the
Switch from an invalid address, the Switch will reject the connection, enter an event message in the system log,
and send a trap message to the trap manager.
IP addresses can be configured for web, SNMP, and Telnet access. Each of these groups can include up to five
different sets of addresses, either individual addresses or address ranges. When entering addresses for the same
group (i.e., SNMP, web or Telnet), the Switch will not accept overlapping address ranges. When entering
addresses for different groups, the Switch will accept overlapping address ranges.
You cannot delete an individual address from a specified range. You must delete the entire range, and reenter the
addresses. You can delete an address range just by specifying the start address, or by specifying both the start
address and end address.

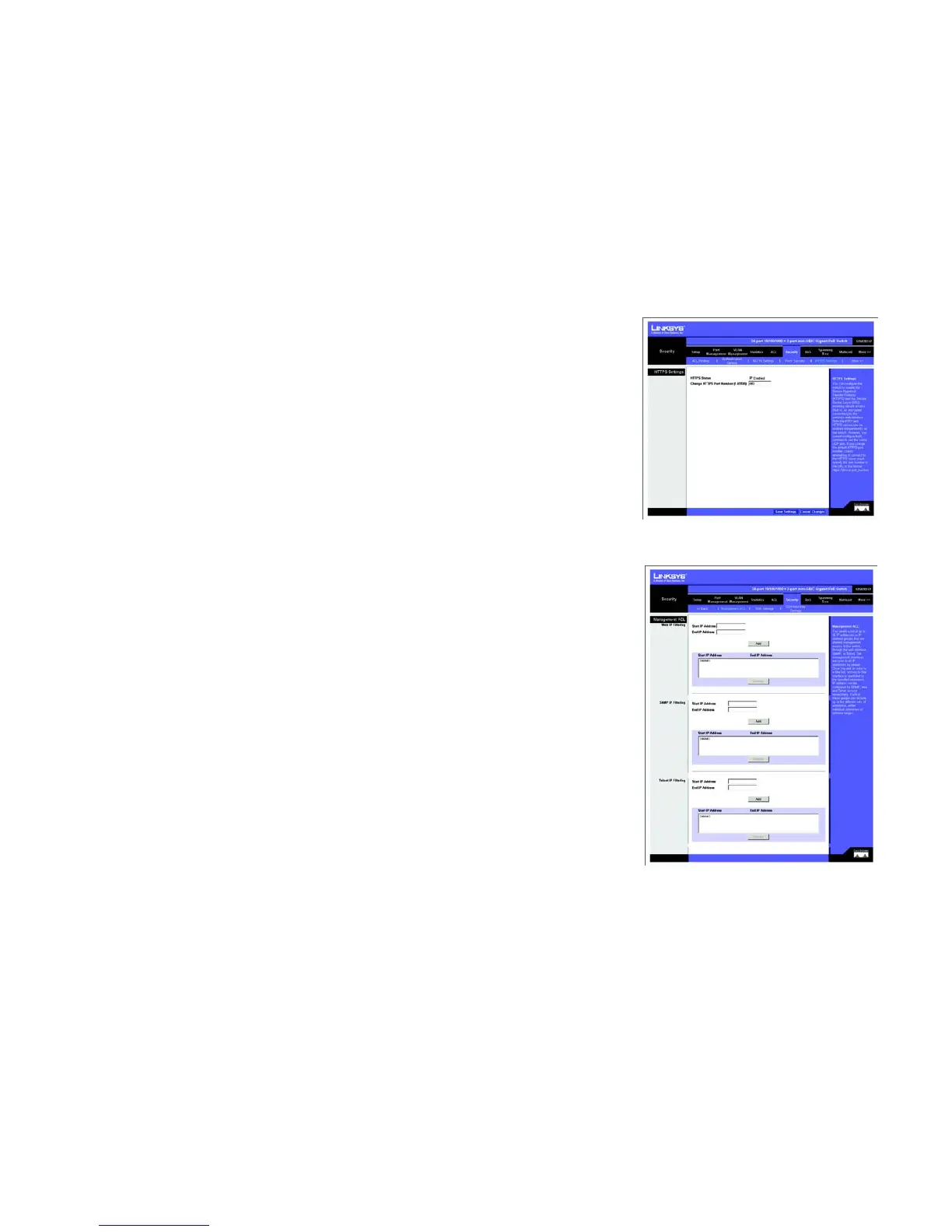

Figure 5-32: Security - Management ACL
Figure 5-31: Security - HTTPS Settings
