Chapter 5: Using the Web-based Utility for Configuration
Setup Tab - Summary
24-Port 10/100/1000 Gigabit Switch with Webview and PoE
Setup Tab - Summary
The Summary screen provides device and system information about the Switch.
Device Information
System Name. Displays the name for the Switch, if one has been entered on the Setup - Network Settings tab.
IP Address.The IP address of the Switch is displayed here (configurable from Setup - Network Settings tab).
Subnet Mask. The Subnet Mask of the Switch is displayed here (configurable from Setup - Network Settings
tab).
DNS Servers.The DNS Servers are displayed here (configurable from Setup - Network Settings tab).
Default Gateway. The Default Gateway is displayed here (configurable from Setup - Network Settings tab).
Address Mode. Indicates whether the Switch is configured with a Static or Dynamic IP address (configurable
from Setup - Network Settings tab).
Base MAC Address. This is the MAC address of the Switch.
System Information
Serial Number. The product’s Serial Number is displayed here.
Model Name. This is the model number and name of the Switch.
Hardware Version. The version number of the Switch’s hardware is displayed here.
Boot Version. Indicates the system boot version currently running on the device.
Firmware Version. The Firmware (software) version number is displayed here.
System Location. The system name is displayed here (configurable from Setup - Network Settings tab).
System Contact. The contact person for this Switch is displayed here (configurable from Setup - Network
Settings tab).
System Up Time. This displays the amount of time that has elapsed since the Switch was last reset.
Current Time. The system time is displayed here (configurable from Setup - Time tab).

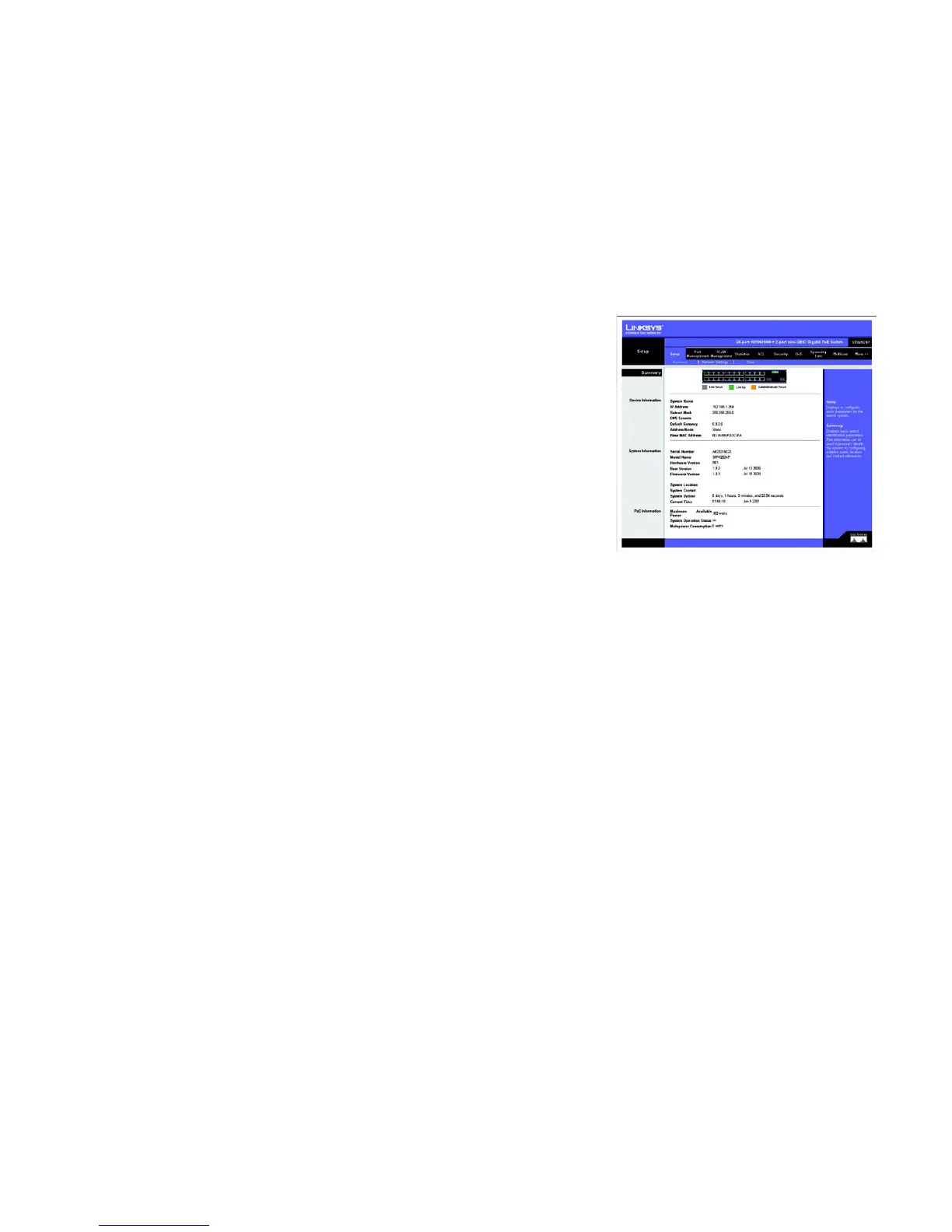

Figure 5-2: Setup - Summary
